Audi A6 Typ 4G: Component Location Overview - Luggage Compartment Trim Panels

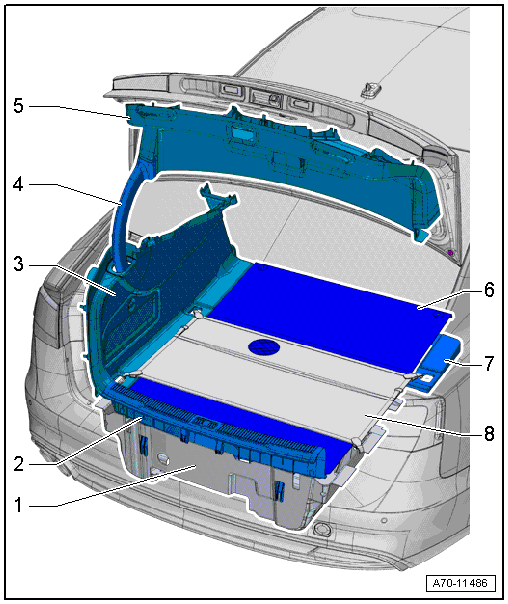

Component Location Overview - Luggage Compartment Trim Panels, Sedan

Component Location Overview - Luggage Compartment Trim Panels, Sedan

1 - Spare Tire Well Trim

  • Overview. Refer to → Chapter "Overview - Luggage Compartment Floor, Sedan".

2 - Rear Lid End Trim Panel

  • Overview. Refer to → Chapter "Overview - Lock Carrier Trim Panel, Sedan".

3 - Luggage Compartment Side Trim Panel

  • Overview. Refer to → Chapter "Overview - Luggage Compartment Side Trim Panel".

4 - Rear Lid Hinge

  • Overview. Refer to → Chapter "Overview - Lower Rear Lid Trim Panel, Sedan".

5 - Rear Lid Trim

  • Overview. Refer to → Chapter "Overview - Lower Rear Lid Trim Panel, Sedan".

6 - Luggage Compartment Floor Covering

  • Overview. Refer to → Chapter "Overview - Luggage Compartment Floor".

7 - Rear Panel Sill Frame

  • Overview. Refer to → Chapter "Overview - Luggage Compartment Floor, Sedan".

8 - Cargo Net

  • Attach to the tie downs

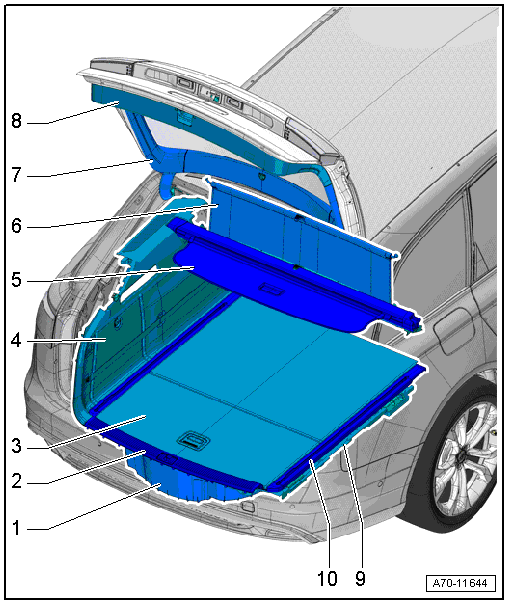

Component Location Overview - Luggage Compartment Trim Panel, Avant

Component Location Overview - Luggage Compartment Trim Panel, Avant

1 - Spare Wheel Well Replacement Part

  • Equipment levels

2 - Rear Lid End Trim Panel

  • Overview. Refer to → Chapter "Overview - Lock Carrier Trim Panel, Avant".

3 - Luggage Compartment Floor Covering

  • Overview. Refer to → Chapter "Overview - Luggage Compartment Floor, Avant".

4 - Luggage Compartment Side Trim Panel

  • Overview. Refer to → Chapter "Overview - Luggage Compartment Side Trim Panel, Avant".

5 - Luggage Compartment Cover

  • Luggage compartment cover motor assembly overview. Refer to → Chapter "Overview - Luggage Compartment Roll Cover".

6 - Screen Separator Wall

  • Overview. Refer to → Chapter "Overview - Screen Separator".

7 - Rear Lid Upper Trim

  • Overview. Refer to → Chapter "Overview - Rear Lid Trim Panel, Avant".

8 - Rear Lid Lower Trim

Vehicles with:

  • Without sun shade
  • With sun shade
  • Overview. Refer to → Chapter "Overview - Rear Lid Trim Panel, Avant".

9 - Luggage Compartment Floor Trim Panel

  • Removing and installing. Refer to → Chapter "Spare Wheel Well Trim, Removing and Installing, Avant".

10 - Retaining Tracks

  • Overview. Refer to → Chapter "Overview - Luggage Compartment Floor, Avant".
