Audi A6 Typ 4G: Emergency unlocking and locking the doors
Each door must be locked separately if the power
locking system fails.
![Opening and closing](images/books/1/index(1).92.png)

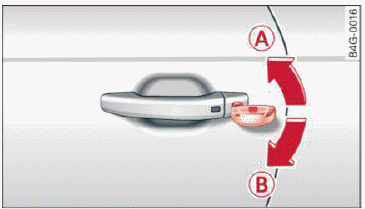

Fig. 22 Driver's door: door lock cylinder
![Opening and closing](images/books/1/index(1).93.png)

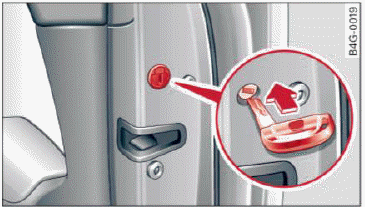

Fig. 23 Door: emergency locking
If the central locking system malfunctions, you
must unlock/lock the doors separately using the
mechanical key.
Unlocking/locking the driver's door with the
mechanical key
- Remove the integrated mechanical key
or use the separate mechanical key.
- To unlock the driver's door, turn the key to the
open position A
fig. 22.
- To lock the driver's door, move the selector lever
to the P position (automatic transmission)
and turn the key one time to the close position B
.
Locking the front passenger's door/rear
doors with the mechanical key
The emergency lock is located on the rear side of
the front passenger's door and the rear doors. It
is only visible when the door is open.
- Remove the integrated mechanical key
or use the separate mechanical key.
- Pull the cap out of the opening
fig. 23.
- Insert the key in the inside slot and turn it all
the way to the right (right door) or left (left
door).
WARNING
Read and heed all WARNINGS
.
Anti-theft alarm system
If the anti-theft alarm system detects a vehicle
break-in, audio and visual warning signals are
triggered. The anti-theft alarm system is activated
when the vehicle is locked as usual. It
switches off when the vehicle is unlocked.
If the alarm is triggered, it will shut off automatically
after a certain amount of time. Switch the
ignition on or press the
button on
the remote
control key to turn off the alarm.
