Audi A6 Typ 4G (2011–2018) Owner's Manual / Starting and driving / Lights and Vision / Adjusting the exterior lighting

Audi A6 Typ 4G: Adjusting the exterior lighting

The functions ore adjusted in the Infotainment system.

  • Select: [CAR] function button > (Car) Systems control button > Vehicle settings > Exterior lighting.

Automatic headlights

You can adjust the following settings in the Automatic headlights menu:

Activation sensitivity - you can adjust if the headlights switch on Early, Medium or Late according to the sensitivity of the light sensor.

Auto-dimming high beams - you can switch the high beam assistant On and Off.

Daytime running lights

USA models: the daytime running lights can be switched on/off. Select On or Off.

Canada models: this function cannot be switched off. They activate automatically each time the ignition is switched on.

Coming home, Leaving home

The coming home function illuminates the area outside the vehicle when you turn the ignition off and open the driver's door. To turn the function on, select Lights when leaving car > On.

The leaving home illuminates the area outside the vehicle when you unlock the vehicle. To turn the function on, select Lights when unlocking car > On.

The coming home and leaving home functions only operate when it is dark and the light switch is in the AUTO position.

Emergency flashers

Lights and Vision

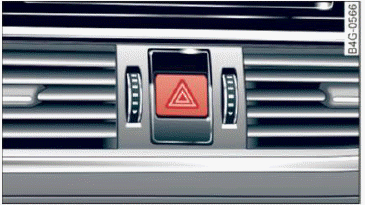

Fig. 39 Center console: emergency flasher button

The emergency flashers makes other drivers aware of your vehicle in dangerous situations.

  • Press the button to switch the emergency flashers on or off.

You can indicate a lane change or a turn when the emergency flashers are switched on by using the turn signal lever. The emergency flashers stop temporarily.

The emergency flashers also work when the ignition is turned off.
