Audi A6 Typ 4G: Cruise control system
Switching on
Applies to: vehicles with cruise control system
The cruise control system makes it possible to
drive at a constant speed starting at 20 mph (30
km/h).

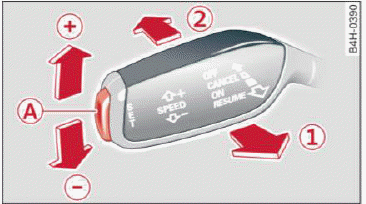

Fig. 88 Operating lever: cruise control system
- To switch the cruise control on, pull the lever
into position 1
fig. 88.
- Drive at the speed to be maintained.
- To store the speed, press the button A.
The stored speed and the (USA
models) / (Canada models)
indicator light are displayed
in the instrument cluster.
This information is also shown briefly in the
Head-up display.
The speed is maintained by modifying engine
power or through an active brake intervention.
WARNING
Tips
The brake lights turn on when the brakes are
applied automatically.
READ NEXT:
Applies to: vehicles with cruise control system
To increase or decrease the speed in increments,
tap the lever toward
fig. 88.
To increase or decrease the speed quickly, hold
the lever in the
Description
Applies to: vehicles with Audi adaptive cruise control
Fig. 89 Detection range
The adaptive cruise control system is a combination
of speed and distance regulation. It assists
the driver
Applies to: vehicles with Audi adaptive cruise control
Fig. 91 Example: driving into a curve
When driving into a curve
fig. 91 and out of a
curve, the adaptive cruise control may react to an
object
SEE MORE:
Applies to: vehicles with Audi adaptive cruise control
Fig. 91 Example: driving into a curve
When driving into a curve
fig. 91 and out of a
curve, the adaptive cruise control may react to an
object in the neighboring lane and apply the
brakes. You can prevent that by pressing the accelerator
pedal
Identification
Transmission Identification
The following details can be found on the transmission
housing -arrows-:
LHF =
Transmission CodeD04
= Manufacturer key0026 =
serial numberK100808
= Factory:
K = Kassel
Build date:
100808 = 08/10/2008
Note
The transmission code is also listed
