Audi A6 Typ 4G: Decorative wheel covers
Applies to: vehicles with decorative wheel covers
The decorative wheel covers must be removed
first to access the wheel bolts.
.83.png)

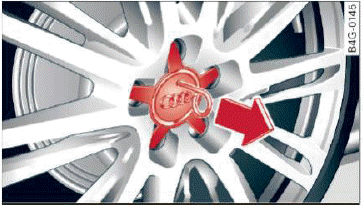

Fig. 195 Changing a wheel: Removing the wheel cover
Removing
- Insert the hook (provided with the vehicle tool
kit) in the hole in the wheel hub cover.
- Pull off the decorative wheel cover
fig. 195
Wheels with wheel bolt caps
Applies to: vehicles with wheel bolts with caps
The cops must be removed first from the wheel
bolts before the bolts con be unscrewed.
.84.png)

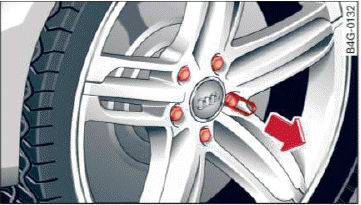

Fig. 196 Changing a wheel: removing the wheel bolt caps
Removing
- Push the plastic clip (provided with the vehicle
tool kit) over the wheel bolt cap until the inner
retainers on the clip align with the edge of the
cover.
- Remove the cap with the plastic clip (vehicle
tool kit)
fig. 196.
Refitting
- Place the caps over the wheel bolts and push
them back on.
The caps are to protect and keep the wheel bolts
clean.
