Audi A6 Typ 4G: Efficiency program
Applies to: vehicles with efficiency program

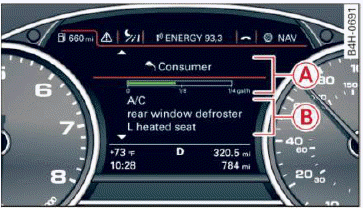

Fig. 9 Instrument cluster: other equipment

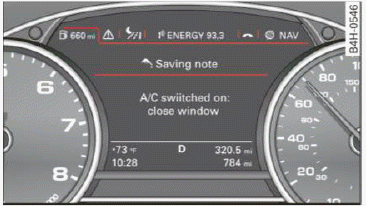

Fig. 10 Instrument cluster: economy tip
The efficiency program can help you to use less
fuel. It shows other consumers that are using
fuel and economy tips give advice on how to drive
efficiently. The efficiency program receives distance
and consumption data from the on-board
computer.
To display the efficiency program, open the Vehicle
functions menu and select the Efficiency program
menu item.
Other consumers
The Energy consumers view lists other equipment
that is currently affecting fuel consumption.
The display shows up to three other equipment
items (B) fig. 9. The equipment using
the
most power is listed first. If more than three
items using power are switched on, the equipment
that is currently using the most power is
displayed.
A gauge (A) also shows the current total consumption
of all other consumers.
Economy tips
In certain situations, economy tips appear automatically
for a short time in the efficiency program
fig. 10. If you follow these
economy tips,
you can reduce your vehicle's fuel consumption.
To turn an economy tip off immediately after it
appears, press any button on the multifunction
steering wheel.
Tips
- If you erase the data in the efficiency program,
the values in the on-board computer
will also be reset.
- Once you have turned an economy tip off, it
will only appear again after you turn the ignition
on again.
- The economy tips are not displayed in every
instance, but rather in intervals over a period
of time.
