Audi A6 Typ 4G: Installing the upper tether strap on the
anchorage
![Child safety](images/books/1/index(5).49.png)

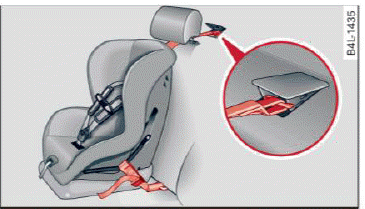

Fig. 173 Tether strap: proper routing and mounting
Installing the tether strap
- Release or deploy the tether strap on the child
restraint according to the child restraint manufacturer's
instructions.
- Guide the upper tether strap under the rear
head restraint
fig. 173 (raise the head
restraint
if necessary). For child restraints with V-tether
straps, always make sure that the head
restraint guide rods do not interfere with any
part of the top tether strap.
- Tilt the recess flap up to expose the anchor
bracket.
- Attach the tether strap anchorage hook into
the opening of the tether anchorage.
- Pull on the tether strap hook so that the spring
catch of the hook engages.
- Tighten the tether strap firmly following the
child restraint manufacturer's instructions.
Releasing the tether strap
- Loosen the tension following the child restraint
manufacturer's instructions.
- Depress the spring catch on the hook and release
it from the anchorage.
Note
If you leave the child restraint with the tether
strap firmly installed for several days, this
could leave a mark on the upholstery on the
seat cushion and backrest in the area where
the tether strap was installed. The upholstery
would also be permanently stretched around
the tether strap. This applies especially to
leather seats.
Using tether straps on rearward-facing
child restraints
Currently, few rear-facing child restraint systems
come with a tether. Please read and heed the
child restraint system manufacturer's instructions
carefully to determine how to properly install
the tether.
WARNING
A child in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the front
airbag inflates - even with an Advanced Airbag
System.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, or
door.
- If you must install a rearward facing child
safety seat on the front passenger seat because
of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear seating position and have the
airbag system
inspected by your Audi dealer.
