Audi A6 Typ 4G: Operation
The driver information system is operated using
the buttons on the multifunction steering wheel.
![Driver information system](images/books/1/index(1).76.png)

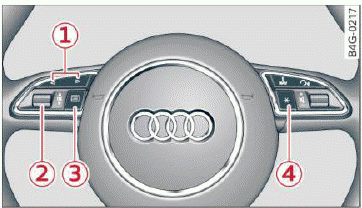

Fig. 6 Multifunction steering wheel: operating the driver
information system
![Driver information system](images/books/1/index(1).77.png)

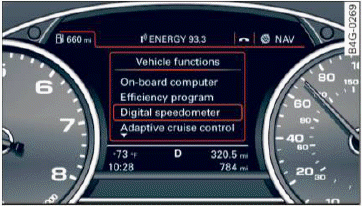

Fig. 7 Instrument cluster: opening the vehicle functions
menu
Operating
- Switch the ignition on.
- To switch between the tabs, press the rocker
switch 1 to the left or right
fig. 6.
- To access additional information below or
above, turn the thumbwheel 2 down or up.
- To confirm a selection, press the thumbwheel 2.
- To open the submenu for an active tab, press
the button
3.
- To select a function programmed to a steering
wheel button, press the button 4.
Opening the Vehicle functions
- Select the first tab with the rocker switch 1.
- Press the
button 3. The
Vehicle functions
menu is displayed
fig. 7.
- To select a menu item, turn and press the
thumbwheel 2.
Resetting values to zero
- In the Vehicle functions menu, select Onboard
computer or Efficiency program.
- You can now select between the long-term
memory and short-term memory.
- To reset the values in a memory, press and hold
the thumbwheel 2 for one second.
Assigning a function to a programmable
steering wheel button
- Select the
function button
> (Car) Systems
control button > Vehicle settings > Steering
wheel button programming.
The last function selected displays when you
switch the ignition on.
