Audi A6 Typ 4G (2011–2018) Owner's Manual / Driver assistance / Parking systems / Parking system plus

Audi A6 Typ 4G: Parking system plus

Description

Applies to: vehicles with parking system plus

Parking system plus provides audio and visual signals when parking.

Parking systems

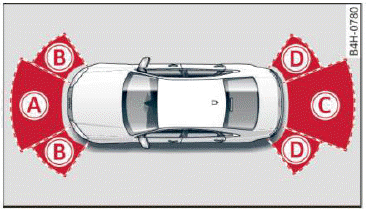

Fig. 116 Display field

Sensors are located in the front and rear bumpers.

If these detect an obstacle, audible and visual signals warn you.

Make sure the sensors are not covered by stickers, deposits or any other obstructions as it may impair the sensor function. For information on cleaning.

The display field begins approximately at:

  1. 4 ft (1.20 m)
  2. 3 ft (0.90 m)
  3. 5.2 ft (1.60 m)
  4. 3 ft (0.90 m)

The closer you get to the obstacle, the shorter the interval between the audible signals. A continuous tone sounds when the obstacle is less than approximately 1 foot (0.30 meters) away.

Do not continue driving forward or in reverse in General information.

If the distance to an obstacle remains constant, the volume of the distance warning gradually drops after about four seconds (this does not apply in the continuous tone range).

Switching on/off

Applies to: vehicles with parking system plus

Parking systems

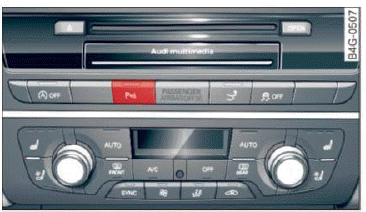

Fig. 117 Center console: parking aid button

Switching on

  • Shift into reverse, or
  • Press the button in the center console fig. 117. A short confirmation tone sounds and the LED in the button turns on.

Switching off

  • Drive faster than 6 mph (10 km/h), or
  • Press the button, or
  • Switch the ignition off.

Visual display

The segments in front of and behind the vehicle help you to determine the distance between you and an obstacle.

The red lines mark the expected direction of travel according to the steering angle. A white segment indicates an identified obstacle that is outside of the vehicle's path. Red segments show identified obstacles that are in your vehicle's path. As your vehicle comes closer to the obstacle, the segments move closer to the vehicle. The collision area has been reached when the next to last segment is displayed. Obstacles in the collision area, including those outside of the vehicle's path, are shown in red. Do not continue driving forward or in reverse in General information.
