Audi A6 Typ 4G: Rearview camera
Introduction
Applies to: vehicles with rearview camera

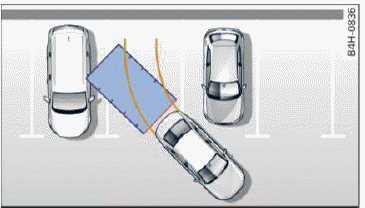

Fig. 118 Illustration: Cross parking

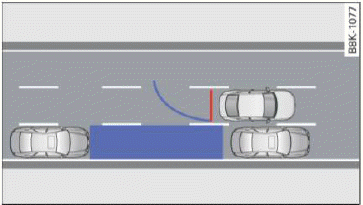

Fig. 119 Illustration: parallel parking
The rearview camera gives you two views: you can
use Cross parking to park in a parking space or a
garage, for example
fig. 118. You can use parallel
parking if you would like to park on the side
of the road
fig. 119.
General information
Applies to: vehicles with rearview camera

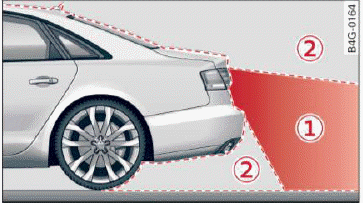

Fig. 120 Area covered 1 and area not covered 2 by the
rearview camera.

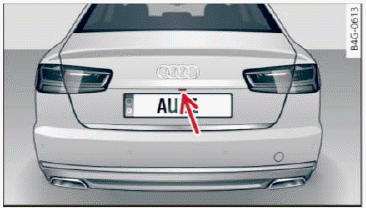

Fig. 121 Luggage compartment lid: location of the rear view camera
The rearview camera is located above the rear license
plate bracket. Make sure that the lens for
the parking system
fig. 121 is not covered by
deposits or any other obstructions because this
can affect the function of the parking system. For
information on cleaning.
The rearview camera coverage area includes 1
fig. 120. Only this area is
shown in the Infotainment
display. Objects that are outside of this
area 2 are not displayed.
WARNING
- Always read and follow the applicable warnings
in General information.
- If the position and the installation angle of
the rearview camera was changed, for example
after a collision, do not continue to
use the system for safety reasons. Have it
checked by an authorized Audi dealer or authorized
Audi Service Facility.
- Only use the rearview camera to assist you if
it shows a good, clear picture. For example,
the image may be affected by the sun shining
into the lens, dirt on the lens, or if there
is a malfunction.
- Use the rearview camera only if the luggage
compartment lid is completely closed. Make
sure any objects you may have mounted on
the luggage compartment lid do not block
the rearview camera.
- The camera lens enlarges and distorts the
field of vision. The object appears both altered
and inaccurate on the screen.
- In certain situations, people or objects in
the display appear closer or farther away:
- For objects that do not touch the ground,
such as the bumper of a parked vehicle, a
trailer hitch or the rear of a truck. Do not
use the orientation lines in this case.
- If driven from a level surface onto an incline,
or a downward slope.
- If driven toward protruding objects.
- If the vehicle is carrying too much load in
the rear.
- Applies to: vehicles with air suspension: the
accuracy of the orientation lines and blue
surfaces decreases when the vehicle is
raised/lowered.
Note
- Always read and follow the applicable warnings.
- The orange-colored orientation lines in the
Infotainment display show the vehicle path
based on the steering wheel angle. The
front of the vehicle swings out more than
the rear of the vehicle. Maintain plenty of
distance so that an exterior mirror or a corner
of the vehicle does not collide with any
obstacles.
Switching on/off
Applies to: vehicles with rearview camera
Switching on
- Shift into reverse, or
- Press the button in the
center console
fig. 117. A short confirmation
tone sounds and the LED in the button turns
on.
Switching between the rearview camera and
optical display
- Press the Graphic control button 5
fig. 122 to see the optical
display.
- Press the Rear view control button to see the
rearview camera image.
Switching off
- Drive faster than 6 mph (10 km/h), or
- Press the button, or
- Switch the ignition off.
Tips
- The visual display in the left part of the display
should help you detect the critical vehicle
areas.
- You can change the volume and pitch of the
signals as well as the display.
