Audi A6 Typ 4G: Shifting manually (tiptronic mode)
The tiptronic mode allows the driver to shift the
gears manually.

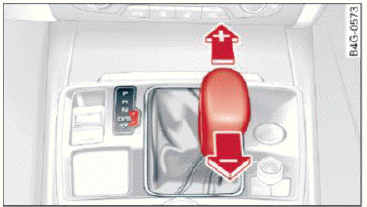

Fig. 85 Center console: shifting manually with the selector
lever

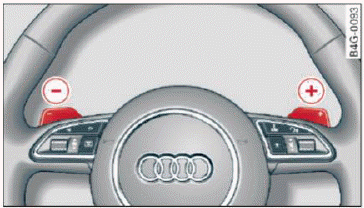

Fig. 86 Steering wheel: manual shifting with the shift paddles
Shifting with the selector lever
You can shift into tiptronic mode while stationary
and while driving.
- To shift into tiptronic mode, push the selector
lever from the D/S setting to the right. As soon
as the transmission switches over, the M selector
lever position will appear in the instrument
cluster display.
- To shift up a gear, tap the selector lever forward
(+)
fig. 85.
- To shift down a gear, tap the selector lever back (-).
Shifting with the shift paddles
You can operate the shift paddles in the D/S or M
selector lever positions.
- To shift up one gear, tap the shift paddle (+)
fig. 86.
- To shift down one gear, tap the (-) shift paddle.
The transmission automatically shifts up or down
before critical engine speed is reached.
The transmission only allows manual shifting
when the engine speed is within the permitted
range.
Kick-down
Kick-down enables maximum acceleration.
When you press the accelerator pedal down beyond
the resistance point, the automatic transmission
downshifts into a lower gear, depending
on vehicle speed and engine RPM. It shifts up into
the next higher gear once the maximum specified
engine RPM is reached.
WARNING
Please note that the wheels could spin on
slick or slippery roads when kick-down is active.
