Audi A6 Typ 4G: Storage hooks
Applies to: vehicles with bag hooks
![Seats and storage](images/books/1/index(3).38.png)

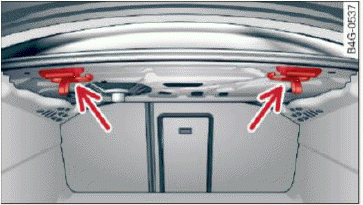

Fig. 69 Luggage compartment: storage hooks
You can also use the hooks to hang light purses,
bags, etc.
WARNING
The hooks can hold a maximum weight of 6.6
lbs (3 kg). Heavier objects are not adequately
secured. There is risk of personal injury.
Pass-through with ski bag
Applies to: vehicles with pass-through and ski bag
Long objects, such as skis or snowboards, con be
transported in the ski bag.
![Seats and storage](images/books/1/index(3).39.png)

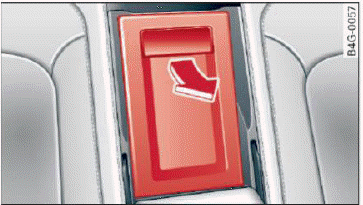

Fig. 70 Backrest: pass-through cover
- To load the ski sack in the vehicle, fold the rear
center armrest down.
- Fold the pass-through cover down
fig. 70.
- Push the packed bag through the opening
from the luggage compartment. The zipper
must face toward the rear.
- Secure the bag.
Tips
You can also open the pass-through from the
luggage compartment. Push the release button
down and push the cover forward.
Securing the ski bag (5 seats)
Applies to: vehicles with pass-through and ski bag
The ski bag must be secured
![Seats and storage](images/books/1/index(3).40.png)

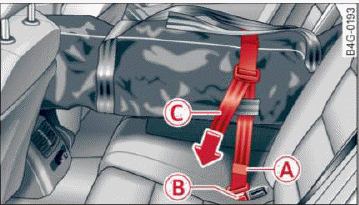

Fig. 71 Rear bench seat: securing the ski sack
- Stick the strap A on the bag in the center safety
belt B
fig. 71.
- Tighten and secure the strap C.
WARNING
Tips
- Only fold the bag up if it is dry.
- When transporting skis or snowboards,
tighten the securing strap between the
bindings.
- Lay skis in the bag with the points facing
forward and snowboards and ski pole points
facing the rear.
