Audi A6 Typ 4G: Unfastening safety belts
Unbuckle the safety belt with the red release
button only after the vehicle has stopped.

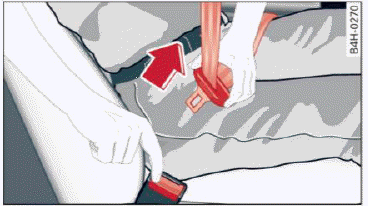

Fig. 151 Releasing the tongue from the buckle
- Push the red release button on the buckle
fig. 151. The belt tongue will
spring out of
the buckle.
- Let the belt wind up on the retractor as you
guide the belt tongue to its stowed position.
WARNING
Never unfasten safety belt while the vehicle is
moving. Doing so will increase your risk of being
injured or killed.
Adjusting safety belt height
With the aid of the safety belt height adjustment,
the three point safety belt strap routing
con be fitted to the shoulder area, according to
body size.

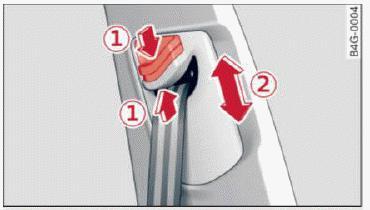

Fig. 152 Safety belt height adjustment for the front seats
- loop-around fittings
The shoulder belt should lie as close to the center
of the collar bone as possible and should fit well
on the body.
- Push the loop-around fittings up
fig. 152 2,
or
- squeeze together the 1 button, and push the
loop-around fittings down 2.
- Pull the belt to make sure that the upper attachment
is properly engaged.
WARNING
Always read and heed all WARNINGS and other
important information.
Tips
With the front seats, the height adjustment
of the seat can also be used to adjust the position
of the safety belts.
Improperly worn safety belts
Incorrectly positioned safety belts con cause severe
injuries.
Wearing safety belts improperly can cause serious
injury or death. Safety belts can only work
when they are correctly positioned on the body.
Improper seating positions reduce the effectiveness
of safety belts and will even increase the
risk of injury and death by moving the safety belt
to critical areas of the body. Improper seating
positions also increase the risk of serious injury
and death when an airbag deploys and strikes an
occupant who is not in the correct seating position.
A driver is responsible for the safety of all
vehicle occupants and especially for children.
Therefore:
- Never permit anyone to assume an incorrect
sitting position in the vehicle while traveling.
WARNING
Improperly worn safety belts increase the risk
of serious personal injury and death whenever
a vehicle is being used.
- Always make sure that all vehicle occupants
are correctly restrained and stay in a correct
seating position whenever the vehicle is being
used.
- Always read and heed all WARNINGS and
other important information.
