Audi A6 Typ 4G (2011–2018) Owner's Manual / Safety / Child safety / Installing a child restraint with LATCH lower anchorages

Audi A6 Typ 4G: Installing a child restraint with LATCH lower anchorages

Whenever you install a child restraint always follow the child restraint manufacturer's instructions.

Child safety

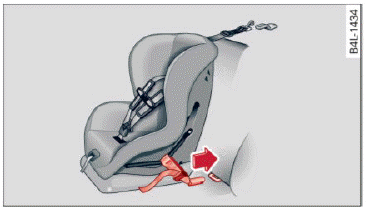

Fig. 171 Lower anchorages: proper mounting

Mounting

  • Make sure the seatback of the rear seat bench is in the upright position and securely latched in place.
  • Attach both hook-on connectors with the spring catch release on the child safety seat onto the LATCH lower anchorage so that the connectors lock into place fig. 171.
  • Pull on the connector attachments to make sure they are properly attached to the LATCH lower anchorage.
  • Pull straps tight following the child restraint manufacturer's instructions.

Releasing

  • Loosen the tension on the straps following the child restraint manufacturer's instructions.
  • Depress the spring catches to release the anchorage hooks from the lower anchorages.

Remember: Use tether straps to help keep the child restraint firmly in place.

WARNING

Improper use of the LATCH system can increase the risk of serious personal injury and death in an accident.

  • These anchors were developed only for child safety seats using the "LATCH" system.
  • Never attach other child safety seats, belts or other objects to these anchors.
  • Always make sure that you hear a click when latching the seat in place. If you do not hear a click the seat is not secure and could fly forward and hit the interior of the vehicle, or be ejected from the vehicle.

WARNING

Improper installation of child restraints will increase the risk of injury in an accident.

  • Always follow the child restraint system manufacturer's instructions for proper installation of the child restraint system and proper use of tether straps as well as the lower anchorages or safety belts in your vehicle.
  • Always read and heed the important information and WARNINGS about child safety and the installation of child restraint systems.
