Audi A6 Typ 4G: Overview - Final Drive
Overview - Final Drive 0BC, 0BD

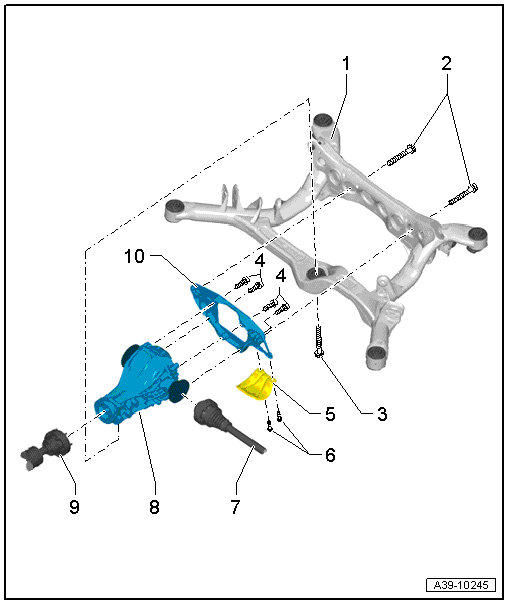

Rear Final Drive
1 - Subframe
- Removing and installing. Refer to
→ Suspension, Wheels, Steering; Rep. Gr.42; Subframe; Overview -
Subframe.
2 - Bolt
3 - Bolt
4 - Bolt
- 55 Nm
- Depending on the date of manufacture for the balance weight fastener.
5 - Heat Shield
6 - Bolt
7 - Drive Axle
- Removing and installing. Refer to
→ Suspension, Wheels, Steering; Rep. Gr.42; Drive Axle; Drive Axle,
Removing and Installing.
8 - Rear Final Drive
- Versions with balance weight.
9 - Driveshaft
- Removing and installing. Refer to
→ Chapter "Driveshaft, Removing and Installing".
- Removing and installing on the rear final drive. Refer to
→ Chapter "Drive Shaft, Removing and Installing from Rear Final Drive".
10 - Crossmember

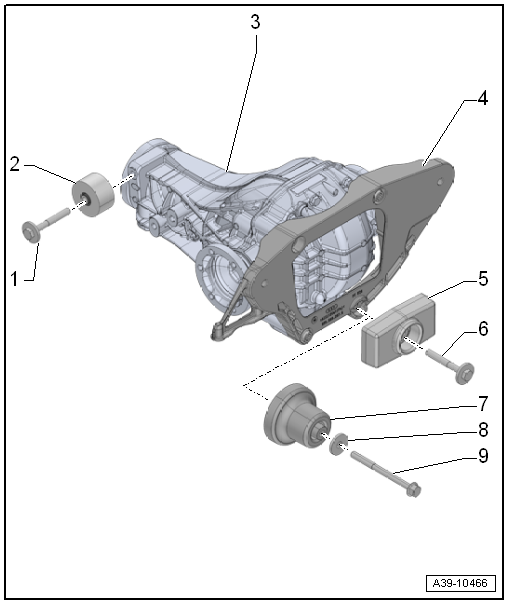

Balance Weight on the Rear Final Drive
1 - Bolt
2 - Balance Weight
- Depending on the date of manufacture; for allocation. Refer to Parts
Catalog
3 - Rear Final Drive
4 - Crossmember
5 - Balance Weight
- Depending on the date of manufacture; for allocation. Refer to Parts
Catalog
6 - Bolt
- Tightening Specification. Refer to -item 4-
7 - Balance Weight
- Depending on the vehicle; allocation for Parts Catalog
8 - Washer
9 - Bolt
- Tightening Specification. Refer to -item 4-

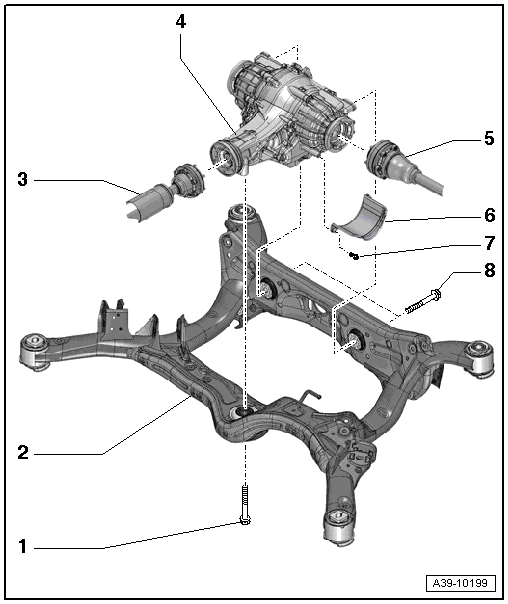

Overview - Final Drive 0BE, 0BF
1 - Bolt
2 - Subframe
- Overview. Refer to
→ Suspension, Wheels, Steering; Rep. Gr.42; Subframe; Overview -
Subframe.
3 - Driveshaft
- Overview. Refer to
→ Chapter "Overview - Driveshaft".
- Removing and installing. Refer to
→ Chapter "Driveshaft, Removing and Installing".
4 - Rear Final Drive
- Additional work after replacing the rear final drive. Refer to
→ Chapter "Additional Work after Replacing Rear Final Drive 0BE, 0BF".
5 - Drive Axle
- Overview. Refer to
→ Suspension, Wheels, Steering; Rep. Gr.42; Drive Axle; Drive Axle,
Removing and Installing.
6 - Heat Shield
7 - Bolt
8 - Bolt
