Overview - Final Drive 0BE, 0BF, Disassembling and Assembling

  Caution

Only some components on the rear final drive can be disassembled.

  • Currently both chambers -item 12- and -item 26- cannot be removed from the final drive.
  • It is therefore currently not possible to repair the interior components.

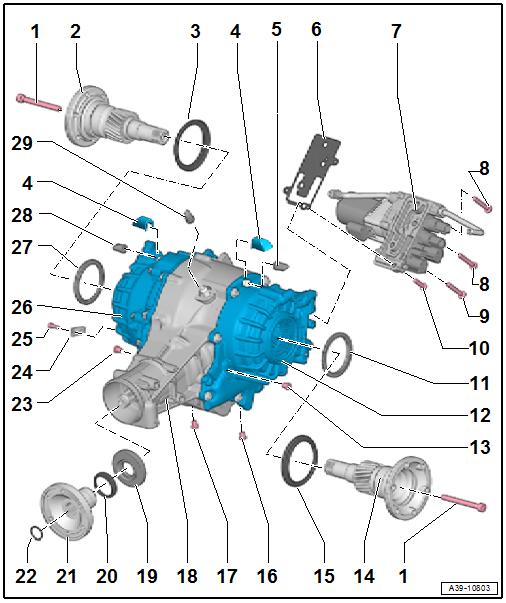

Overview - Final Drive 0BE, 0BF, Disassembling and Assembling

1 - Bolt

  • 50 Nm + 180º additional turn
  • Always replace.

2 - Right Flange Shaft

  • Removing and installing. Refer to → Chapter "Left Seal, Replacing, 0BE, 0BF".
  • Do not confuse with the left flange shaft, they are different

3 - Protective Ring

  • Replacing. Refer to → Chapter "Flange Shaft Ring, Replacing, 0BE, 0BF".

4 - Protective Cap

  • Only for Audi A8
  • If it is not present on the Audi A8 retrofit it. Refer to the Parts Catalog.
  • Installation position. Refer to → Fig. "Protective Cap Installation Position (only for Audi A8)".

5 - ATF Breather Pipe

  • For the left chamber
  • Clip onto the bleed pipe

6 - Seal

  • With strainer

7 - Hydraulic Control Unit

  • With the All Wheel Drive Pump -V415- and lines to the chambers
  • Removing and installing. Refer to → Chapter "Hydraulic Control Unit, Removing and Installing".
  • Disassembling and assembling. Refer to → Chapter "Hydraulic Control Unit, Disassembling and Assembling".

8 - Bolt

  • 20 Nm
  • Quantity: 2
  • M8; 50 mm long
  • Follow the tightening sequence.

9 - Bolt

  • 20 Nm
  • M8; 50 mm long
  • with a permanent seal under the bolt head
  • Coat the threads with Sealing Compound -D 176 501 A1-.
  • Follow the tightening sequence.

10 - Bolt

  • 20 Nm
  • M8; 30 mm long
  • Follow the tightening sequence.

11 - Shaft Seal

  • For the left flange shaft
  • Replacing. Refer to → Chapter "Left Seal, Replacing, 0BE, 0BF".

12 - Left Chamber

13 - ATF Check Plug

  • 15 Nm
  • Always replace.
  • With permanent seal

14 - Left Flange Shaft

  • Removing and installing. Refer to → Chapter "Left Seal, Replacing, 0BE, 0BF".
  • Do not confuse with the right flange shaft, they are different

15 - Protective Ring

  • Replacing. Refer to → Chapter "Flange Shaft Ring, Replacing, 0BE, 0BF".

16 - ATF Drain Plug

  • 15 Nm
  • Always replace.
  • With permanent seal

17 - Gear Oil Drain Plug

  • 15 Nm
  • Always replace.
  • With permanent seal

18 - Final Drive Housing

19 - Shaft Seal

  • For the flange/driveshaft
  • Replacing on rear final drive 0BF. Refer to → Chapter "Input Shaft Seal, Replacing, 0BF".
  • Replacing on rear final drive 0BE. Refer to → Chapter "Input Shaft Seal, Replacing, 0BE".

20 - Protective Ring

  • Replacing. Refer to → Chapter "Flange Input Shaft Ring, Replacing, 0BE, 0BF".

21 - Flange/Driveshaft

  • Removing and Installing on final drive 0BF. Refer to → Chapter "Input Shaft Seal, Replacing, 0BF".
  • Removing and Installing on final drive 0BE. Refer to → Chapter "Input Shaft Seal, Replacing, 0BE".

22 - Circlip

  • Always replace.
  • Installing on final drive 0BF.
  • Installing on final drive 0BE.

23 - Gear Oil Check Plug

  • 15 Nm
  • Always replace.
  • With permanent seal

24 - Bracket

  • For the wiring harness

25 - Bolt

  • 9 Nm

26 - Right Chamber

27 - Shaft Seal

  • For the right flange shaft
  • Replacing. Refer to → Chapter "Left Seal, Replacing, 0BE, 0BF".

28 - ATF Breather Pipe

  • For the right chamber
  • Clip onto the bleed pipe

29 - Final Drive Bleeder

  • Clip onto the bleed pipe

Protective Cap Installation Position (only for Audi A8)

- The protective cap -A- is clipped in in the groove behind the ATF breather pipe -B-.

  Note

The protective cap must be present on both sides on the ATF breather pipe.

A39-10804
