Audi A6 Typ 4G: Refilling AdBlue using a bottle
Applies to: vehicles with selective catalytic reduction
- Remove the cap from the refill bottle
in
Filling AdBlue.
- Position the bottle on the filler tube and turn
the bottle clockwise until it stops turning.
- Press lightly against the bottom of the bottle
to empty it. Continue pressing the bottom of
the bottle until it is empty or until fluid stops
flowing into the tank.
- Remove the bottle and seal the filler neck.
Note
Only use refill bottles that are approved for
your vehicle. Using other systems can cause
AdBlue to leak.
Tips
- You can obtain refill bottles from an authorized
Audi dealer or authorized Audi Service
Facility.
- A permitted refill bottle contains approximately
0.5 gallon (1.9 liters) of AdBlue.
Refilling AdBlue using a canister
Applies to: vehicles with selective catalytic reduction
![Checking and Filling](images/books/1/index(4).55.png)

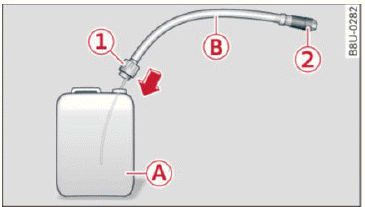

Fig. 179 Canister with attachable hose
- Remove the cover from the refill canister
in Filling AdBlue.
- Secure the end of the hose 1 on the opening in
the canister A by turning the hose to the right.
- Remove the cap 2 from the other end of the
hose B.
- Position the end of the hose 2 on the filler
neck in the vehicle and turn the hose to the
right to tighten it.
- Lift the canister up and then tip it. Continue
holding the canister in a tipped position until it is empty or until no more
fluid flows into the
tank.
- Remove the canister and close the filler tube.
Note
Only use refill canisters that are approved for
your vehicle. Using other systems can cause
AdBlue to leak.
Tips
- An authorized Audi dealer or authorized
Audi repair facility can tell you which refill
canisters are approved for your vehicle.
- A permitted refill canister contains approximately
1.3 gallons (5 liters) of AdBlue.
