Audi A6 Typ 4G: Surrounding

Applies to: vehicles with peripheral cameras

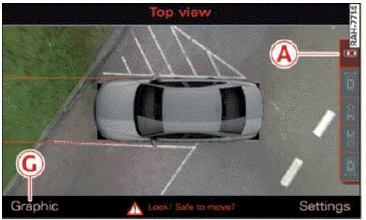

Fig. 129 Infotainment system: Surrounding mode

This view is ideal for maneuvering. The vehicle surroundings are shown using the camera images.

The vehicle image is shown by the system.

Selecting Surrounding

• Select the A symbol with the control knob and press the control knob.

Switching between optical view and camera image

• Press the Graphic G control button to see the optical display.
• To display the camera image, press the Camera control button.

Corner view (front)/Corner view (rear)

Applies to: vehicles with peripheral cameras

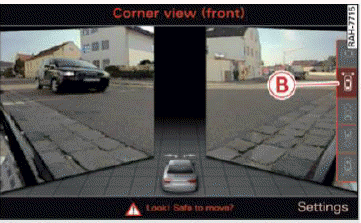

Fig. 130 Infotainment system: Corner view (front)

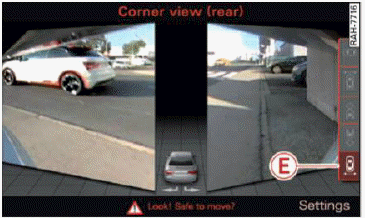

Fig. 131 Infotainment system: Corner view (rear)

This view can assist you for example, when you are exiting from an area with poor visibility. The area at the front and rear sides of the vehicles is displayed.

• To show the side view toward the front, select the symbol B fig. 130 with the control knob and press the control knob.
• To show the side view toward the rear, select the symbol E fig. 131 with the control knob and press the control knob.

Front

Applies to: vehicles with peripheral cameras

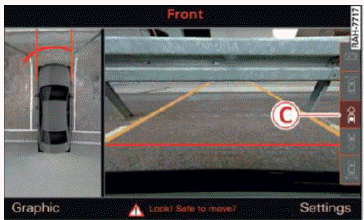

Fig. 132 Infotainment system: front mode

This view assists you for example, in using the full maneuvering range in front of the vehicle.

The area in front of the vehicle is displayed. The vehicle surroundings are shown in the left area of the display. You can switch between the optical display and camera image.

• Select the C symbol with the control knob. The orange orientation lines mark the expected path of the vehicle. Stop the vehicle when the red orientation line borders an object in General information.

Rear

Applies to: vehicles with peripheral cameras

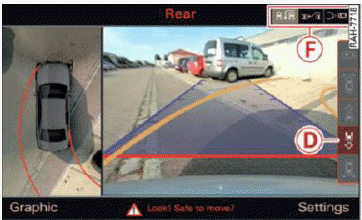

Fig. 133 Infotainment system: rear mode

This view assists you for example, in using the full maneuvering range behind the vehicle. The area behind the vehicle is displayed. The vehicle surroundings are shown in the left area of the display. You can switch between the optical display and camera image.

• Select the symbol D with the control knob.

You can choose between three different views in this mode.

• To cross park, parallel park or position the vehicle in front of a trailer, press the control button F on the control panel repeatedly until the symbol for the desired mode is selected.

Perpendicular parking

Applies to: vehicles with peripheral cameras

This view may be used when parking in a garage or in a parking space.

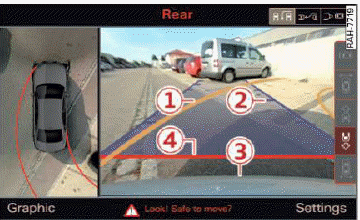

Fig. 134 Infotainment system: aiming at a parking space

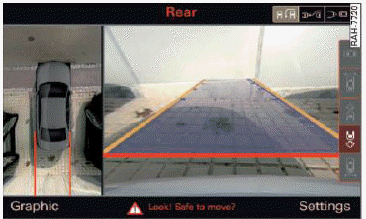

Fig. 135 Infotainment system: aligning the vehicle

Requirement: cross parking must be selected.

• The orange orientation lines (1) show the direction of travel of the vehicle. Turn the steering wheel until the orange orientation lines appear in the parking space fig. 134. Use the markings (2) to help you estimate the distance to an obstacle. Each marking represents approximately 3 ft (1 m). The blue area represents an extension of the vehicle's outline by approximately 16 ft (5 meters) to the rear.
• While driving in reverse gear, adjust the steering wheel angle to fit the parking space using the orange orientation lines for assistance in General information. (3) represents the rear bumper. You should stop reversing at the latest when the red orientation line 4 borders an object in General information.

Parallel parking

Applies to: vehicles with peripheral cameras

This view may be used when parallel parking along the side of a street.

Fig. 136 Infotainment: blue surfaces aligned in the parking space

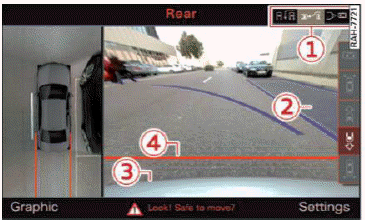

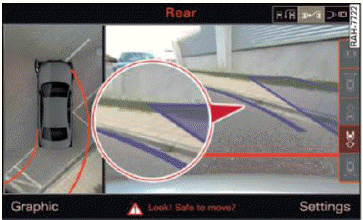

Fig. 137 Infotainment: contact of the blue curved line with the curb

Parking on the right is described here. It is identical when parking on the left.

If there is an obstacle next to the parking space (such as a wall), refer to Information for parking next to obstacles.

• Activate the turn signal.
• Position your vehicle next to a parked vehicle in front of the desired parking space. The distance to this vehicle should be approximately 3 ft. (1 m).
• Turn the Infotainment system on and shift into reverse gear. The parking system must be turned on and the Cross parking view must be displayed.
• Press the control button on the Infotainment unit 1 fig. 124. The Parallel parking view is displayed.
• Back up and align your vehicle so the blue area 2 borders on the rear end of the vehicle behind you or on the parking space line. The blue area represents an extension of the vehicle's outline by approximately 16 ft (5 meters) to the rear.

  The long side of the blue area should be on the curb. The entire blue area must fit into the parking space.

• With the vehicle stopped, turn the steering wheel to the right as far as it will go.
• Back into the parking space until the blue curve fig. 125 touches the curb in General information. Stop the vehicle.
• With the vehicle stopped, turn the steering wheel to the left as far as it will go.
• Continue to back into the parking space until the vehicle is parked parallel to the curb in General information. (3) represents the rear bumper. At the very latest, stop the vehicle when the red orientation line (4) borders an object. Keep an eye on the front of your vehicle while doing this.

Parking next to obstacles

If there is an obstacle (such as a wall) next to the parking space, position the vehicle so there is more space on that side. Position the long side of the blue area so that there is sufficient space from the object. The area must not be on the curb. You will also need to start turning the steering wheel earlier. The blue curve fig. 125 must not touch the obstacle, but rather there should be enough distance.

Tips

The left or right orientation lines and surfaces will be displayed, depending on the turn signal being used.
