Audi A6 Typ 4G: 12 Volt sockets

Applies to: vehicles with 12 volt sockets

Seats and storage

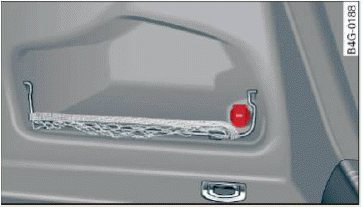

Fig. 60 Luggage compartment side trim: socket

Seats and storage

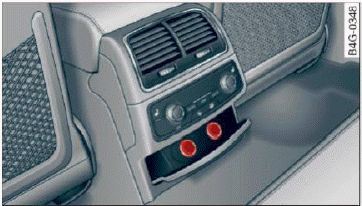

Fig. 61 Example of a rear center console: sockets

  • To reach the 12 Volt socket in the luggage compartment, push the net down.

There are additional 12 Volt socket in the center console under the center armrest and in the rear fig. 61.

The 12-volt sockets can be used for electrical accessories.

The power usage must not exceed 120 watts.

WARNING

The sockets and the electrical accessories connected to them only function when the ignition is switched on. Incorrect usage can lead to serious injuries or burns. To reduce the risk of injuries, never leave children unattended in the vehicle with the vehicle key.

Note

  • To reduce the risk of damage to the vehicle electrical system, never attempt to charge the vehicle battery by connecting accessories that provide power, such as solar panels or battery chargers, to the 12 Volt sockets.
  • To reduce the risk of damage to the sockets, only use plugs that fit correctly.
