Audi A6 Typ 4G: A7 Rims, Sportback, Type 4G

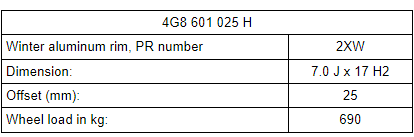

Rim 7 J x 17
![Rim 7 J x 17](images/books/245/index246(1).png)
Note
- The part number and illustration of the following rims are
examples. Refer to the "Parts Catalog" for assistance to order
the correct rims.
- Pay attention when installing Audi original
accessories-wheels to the notes in the "Parts Catalog".
![Rim 7 J x 17](images/books/245/index247(1).png)
![Rim 7 J x 17](images/books/245/index248(1).png)
Rim 8.0J x 17
![Rim 8.0J x 17](images/books/245/index249(1).png)
Note
- The part number and illustration of the following rims are
examples. Refer to the "Parts Catalog" for assistance to order
the correct rims.
- Pay attention when installing Audi original
accessories-wheels to the notes in the "Parts Catalog".
![Rim 8.0J x 17](images/books/245/index250(1).png)
Rim 8.5J x 18
![Rim 8.5J x 18](images/books/245/index251(1).png)

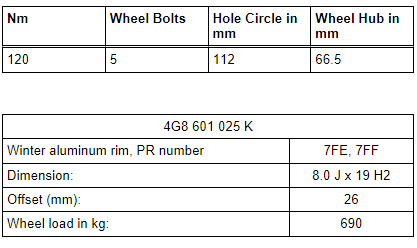

Rim 8.0 J x 19
![Rim 8.0 J x 19](images/books/245/index252(1).png)

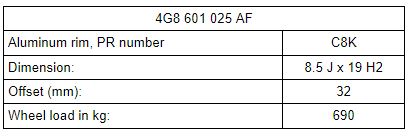

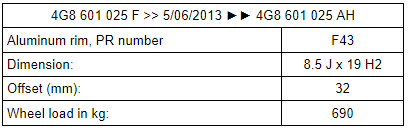

Rim 8.5J x 19
![Rim 8.5J x 19](images/books/245/index253(1).png)
Note
- The part number and illustration of the following rims are
examples. Refer to the "Parts Catalog" for assistance to order
the correct rims.
- Pay attention when installing Audi original
accessories-wheels to the notes in the "Parts Catalog".
![Rim 8.5J x 19](images/books/245/index254(1).png)
![Rim 8.5J x 19](images/books/245/index255(1).png)
![Rim 8.5J x 19](images/books/245/index256(1).png)

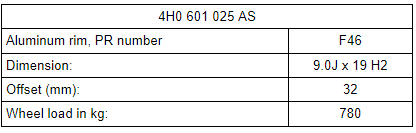

Rim 9.0J x 19
![Rim 9.0J x 19](images/books/245/index257(1).png)
Note
- The part number and illustration of the following rims are
examples. Refer to the "Parts Catalog" for assistance to order
the correct rims.
- Pay attention when installing Audi original
accessories-wheels to the notes in the "Parts Catalog".
![Rim 9.0J x 19](images/books/245/index258(1).png)

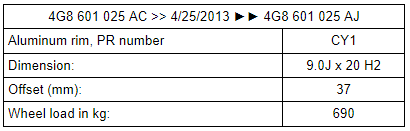

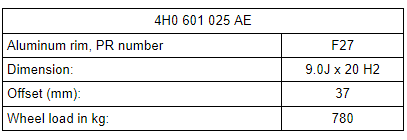

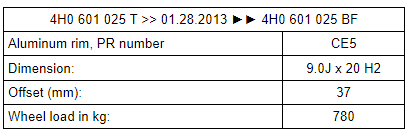

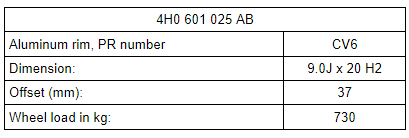

Rim 9.0J x 20
Note
- The part number and illustration of the following rims are
examples. Refer to the "Parts Catalog" for assistance to order
the correct rims.
- Pay attention when installing Audi original
accessories-wheels to the notes in the "Parts Catalog".
![Rim 9.0J x 20](images/books/245/index259(1).png)
![Rim 9.0J x 20](images/books/245/index260(1).png)
![Rim 9.0J x 20](images/books/245/index261(1).png)
![Rim 9.0J x 20](images/books/245/index262(1).png)
![Rim 9.0J x 20](images/books/245/index263(1).png)
![Rim 9.0J x 20](images/books/245/index264(1).png)
Rim 9.0J x 21
![Rim 9.0J x 21](images/books/245/index265(1).png)
Recommended Tires A7, Sportback, Type 4G
Recommended Summer Tires, A7
![Recommended Summer Tires, A7](images/books/245/index266(1).png)

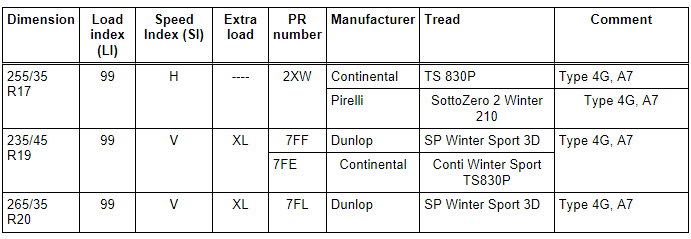

Recommended Winter Tires, A7
![Recommended Winter Tires, A7](images/books/245/index267(1).png)
