Audi A6 Typ 4G: Air Pressures
Tire Pressures A6, (C7), Type 4G Sedan and Avant

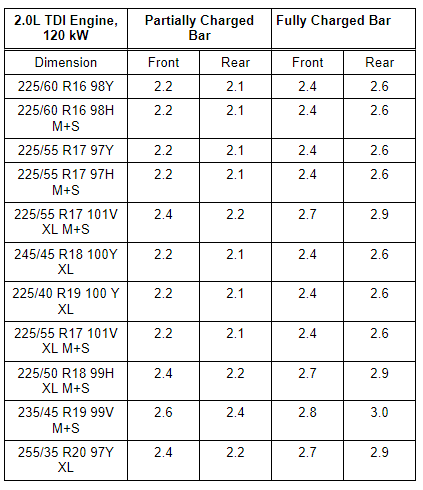

2.0L TDI, 120 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![Tire Pressures A6, (C7), Type 4G Sedan and Avant](images/books/245/index268(1).png)
XL= Extra Load, Reinforced.

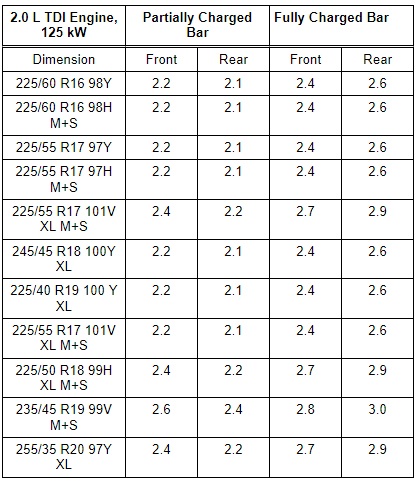

2.0L TDI, 125 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![2.0L TDI, 125 kW](images/books/245/index269(1).png)
XL= Extra Load, Reinforced.

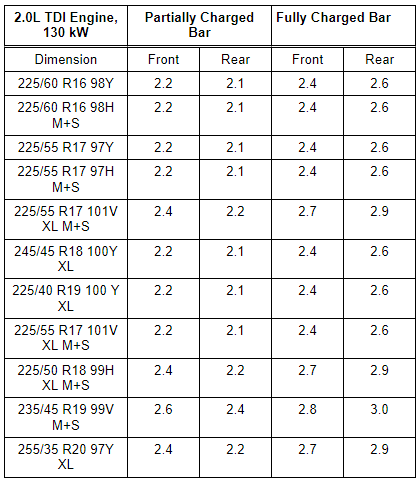

2.0L TDI, 130 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![2.0L TDI, 130 kW](images/books/245/index270(1).png)
XL= Extra Load, Reinforced.

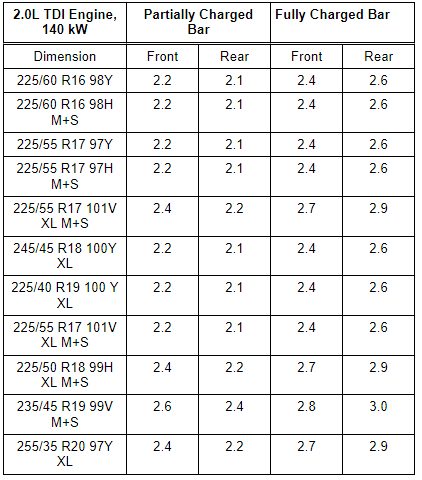

2.0L TDI 140 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![2.0L TDI 140 kW](images/books/245/index271(1).png)
XL= Extra Load, Reinforced.

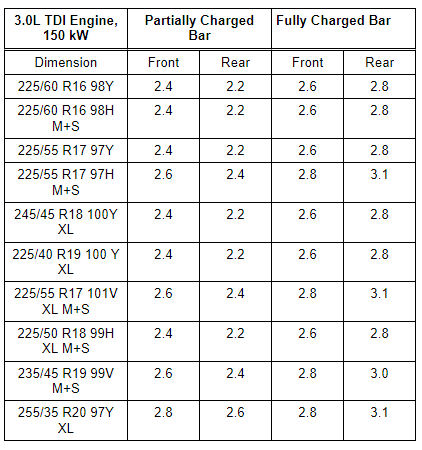

3.0L TDI 150 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TDI 150 kW](images/books/245/index272(1).png)
XL= Extra Load, Reinforced.

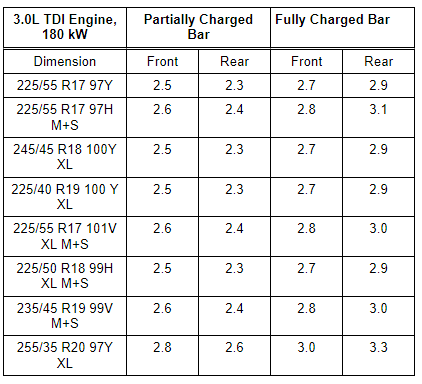

3.0L TDI 180 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TDI 180 kW](images/books/245/index273(1).png)
XL= Extra Load, Reinforced.

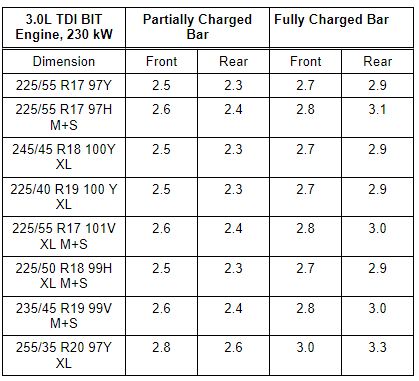

3.0L TDI BIT Engine, 230 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TDI BIT Engine, 230 kW](images/books/245/index274(1).png)
XL= Extra Load, Reinforced.

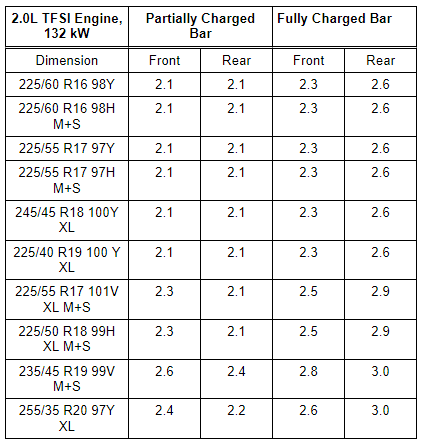

2.0L TFSI 132 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![2.0L TFSI 132 kW](images/books/245/index275(1).png)
XL= Extra Load, Reinforced.

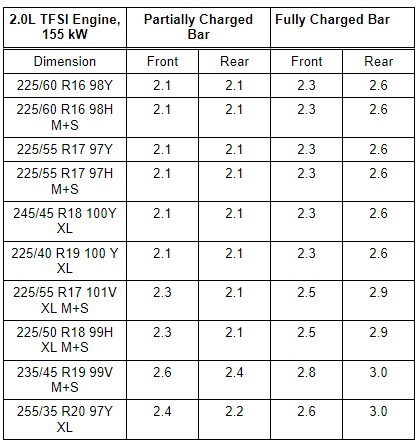

2.0L TFSI, 155 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![2.0L TFSI, 155 kW](images/books/245/index276(1).png)
XL= Extra Load, Reinforced.

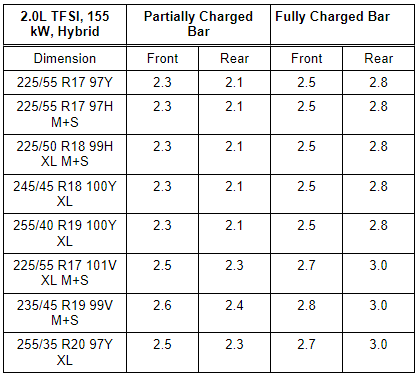

2.0L TFSI, 155 kW, Hybrid
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![2.0L TFSI, 155 kW, Hybrid](images/books/245/index277(1).png)
XL= Extra Load, Reinforced.

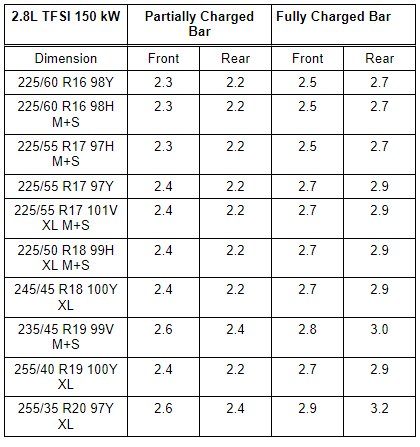

2.8L TFSI 150 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![2.8L TFSI 150 kW](images/books/245/index278(1).png)
XL= Extra Load, Reinforced.

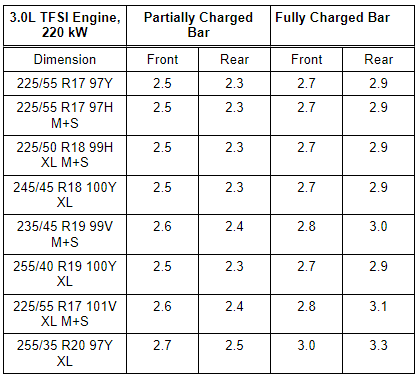

3.0L TFSI 220 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TFSI 220 kW](images/books/245/index279(1).png)
XL= Extra Load, Reinforced.

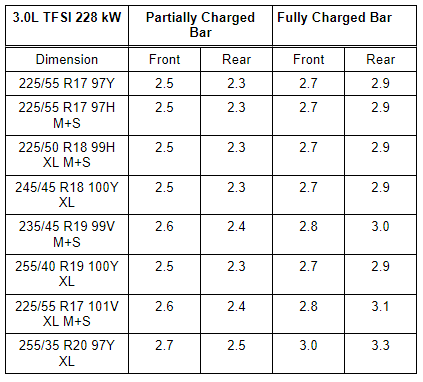

3.0L TFSI 228 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TFSI 228 kW](images/books/245/index280(1).png)
XL= Extra Load, Reinforced.

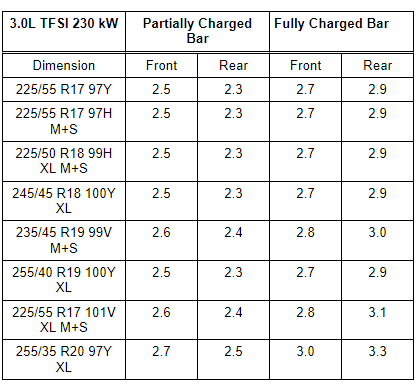

3.0L TFSI 230 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TFSI 230 kW](images/books/245/index281(1).png)
XL= Extra Load, Reinforced.

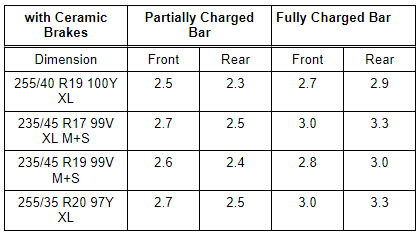

3.0L TFSI, with Ceramic Brakes all kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TFSI, with Ceramic Brakes all kW](images/books/245/index282(1).png)
XL= Extra Load, Reinforced.

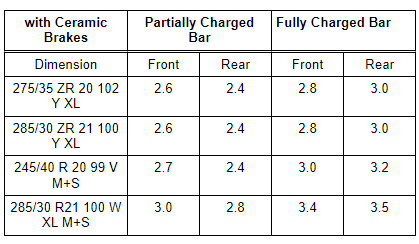

4.0L TFSI, 414 kW, V-max 250 km/h
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![4.0L TFSI, 414 kW, V-max 250 km/h](images/books/245/index283(1).png)
XL= Extra Load, Reinforced.

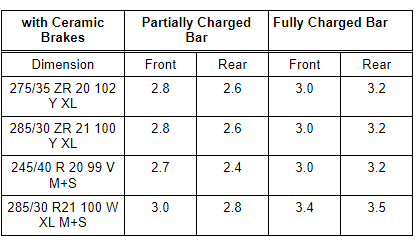

4.0L TFSI, 414 kW, V-max 280 km/h
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![4.0L TFSI, 414 kW, V-max 280 km/h](images/books/245/index284(1).png)
XL= Extra Load, Reinforced.

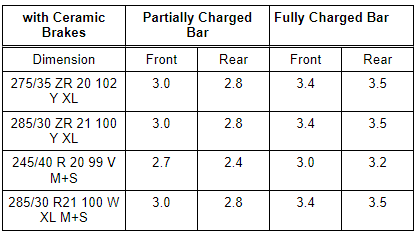

4.0L TFSI, 414 kW, V-max 310 km/h
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![4.0L TFSI, 414 kW, V-max 310 km/h](images/books/245/index285(1).png)
XL= Extra Load, Reinforced.
Tire Pressures A7, Sportback, Type 4G

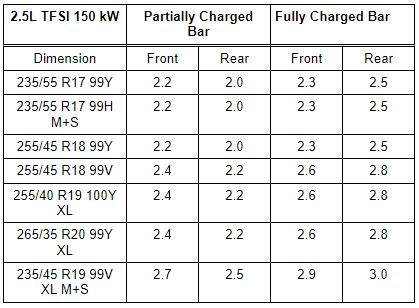

2.5L TFSI 150 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![2.5L TFSI 150 kW](images/books/245/index21(1).png)
XL= Extra Load, Reinforced.

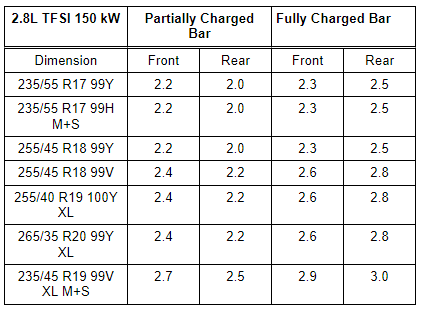

2.8L TFSI 150 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![2.8L TFSI 150 kW](images/books/245/index22(3).png)
XL= Extra Load, Reinforced.

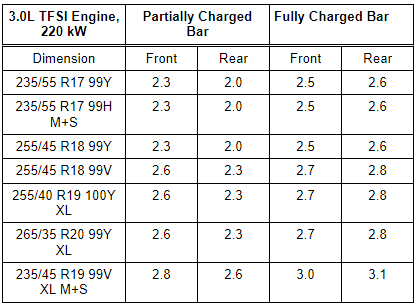

3.0L TFSI 220 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TFSI 220 kW](images/books/245/index23(1).png)
XL= Extra Load, Reinforced.
3.0L TFSI 228 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TFSI 228 kW](images/books/245/index24(2).png)
XL= Extra Load, Reinforced.
4.0L TFSI 300 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog.
![4.0L TFSI 300 kW](images/books/245/index25(2).png)
XL= Extra Load, Reinforced.
4.0L TFSI Engine, 309 kW, S7
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![4.0L TFSI Engine, 309 kW, S7](images/books/245/index26(2).png)
XL= Extra Load, Reinforced.

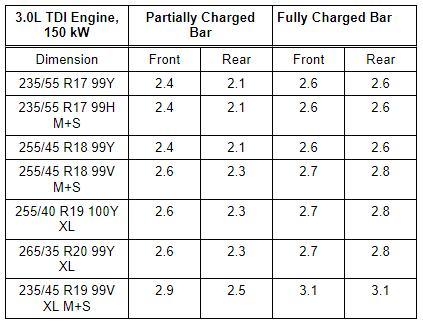

3.0L TDI 150 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TDI 150 kW](images/books/245/index27(2).png)
XL= Extra Load, Reinforced.
3.0L TDI 176 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TDI 176 kW](images/books/245/index28(2).png)
XL= Extra Load, Reinforced.

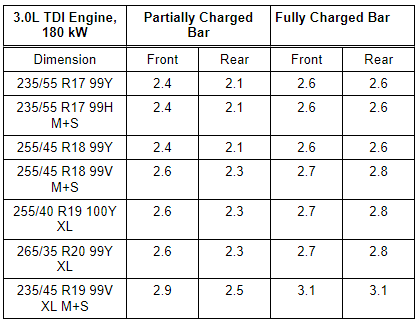

3.0L TDI 180 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TDI 180 kW](images/books/245/index29(2).png)
XL= Extra Load, Reinforced.
3.0L TDI BIT Engine, 230 kW
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![3.0L TDI BIT Engine, 230 kW](images/books/245/index210(2).png)
XL= Extra Load, Reinforced.
4.0L TFSI, 414 kW, V-max 250 km/h
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![4.0L TFSI, 414 kW, V-max 250 km/h](images/books/245/index211(2).png)
XL= Extra Load, Reinforced.

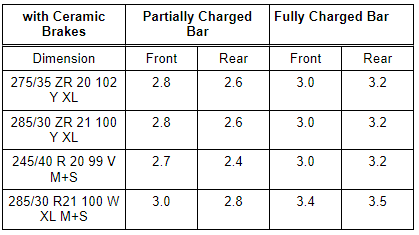

4.0L TFSI, 414 kW, V-max 280 km/h
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![4.0L TFSI, 414 kW, V-max 280 km/h](images/books/245/index212(3).png)
XL= Extra Load, Reinforced.

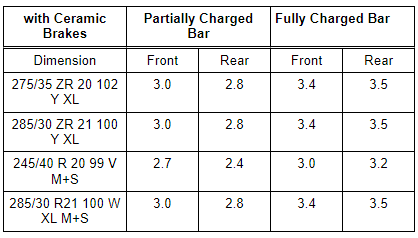

4.0L TFSI, 414 kW, V-max 310 km/h
Note
- The tire pressures must adhere to the specifications on the
tire pressure label in the vehicle.
- If there is no tire pressure label in the vehicle, one may
be ordered from the Parts Catalog
![4.0L TFSI, 414 kW, V-max 310 km/h](images/books/245/index213(2).png)
XL= Extra Load, Reinforced.

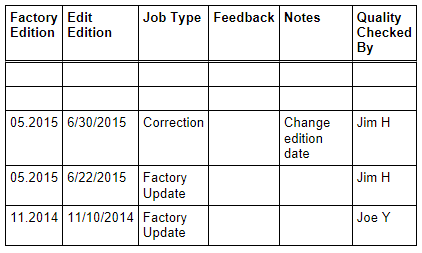

Revision History
DRUCK NUMBER: A005A702321
![Revision History](images/books/245/index214(2).png)
