Audi A6 Typ 4G: Left/Right Front Turn Signal Bulb - M5- / -M7-, Removing and Installing
Left/Right Front Turn Signal Bulb - M5- / -M7-, Removing and Installing, Halogen Headlamps
Removing
- Remove the lock carrier cover. Refer to → Body Exterior; Rep. Gr.63; Front Bumper; Attachments, Removing and Installing.

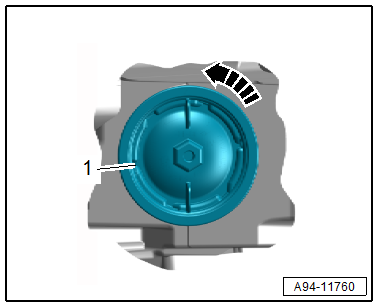

- Turn the bulb socket -1- counterclockwise in direction of -arrow- and remove it from the housing.
- Remove the bulb from the bulb socket.
Installing
Install in reverse order of removal. Note the following:
- Insert the new bulb in the socket. Do not touch the glass bulbs with bare hands.

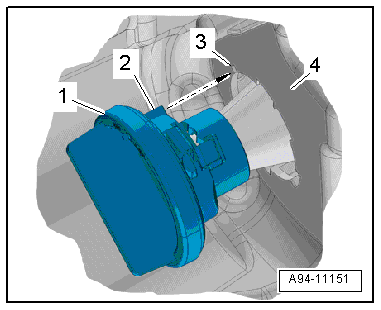

- The socket -1- can be installed into the headlamp housing -4- in only one position.
- The brace -2- on the socket must fit into the guide -3- on the headlamp housing -arrow-.
Left/Right Front Turn Signal Bulb - M5- / -M7-, Removing and Installing, HID Headlamps through MY 2014
DANGER!
Damaged high voltage components may produce dangerously high voltage.
Note the following when working near high voltage components and cables:
- Do not use tools that have sharp edges, that are used for cutting or shaping, or that generate heat, such as welding, soldering, hot air or thermal adhesive equipment.
- Inspect the high voltage components in the area where the work will be performed before starting the procedure.
- Perform a visual inspection of the Electric Drive Power and Control Electronics -JX1-, the Electro-Drive Drive Motor -V141-, the Electrical A/C Compressor -V470- and the high voltage cables when working inside the engine compartment.
- Perform a visual inspection of the high voltage cables and the covers when working on the floor panel.
- Perform a visual inspection of the high voltage cables and the electro-box with the High Voltage System Maintenance Connector -TW- when working in the rear of the vehicle.
- Perform a visual inspection of all of the potential equalization cables.
Note the following when performing the visual inspection:
- None of the components may display any exterior damage.
- The high voltage cable insulation and the potential equalization cables may not be damaged.
- The high voltage cables may not be deformed in any way.
- Each high voltage component muss be labeled with a red warning label.
Removing
- Remove the lock carrier cover. Refer to → Body Exterior; Rep. Gr.63; Front Bumper; Attachments, Removing and Installing.
- On the right: remove the air filter housing. Refer to → 6-Cylinder TDI Common Rail 3.0L 4V Engine; Rep. Gr.23; Air Filter; Air Filter Housing, Removing and Installing or → Rep. Gr.24; Air Filter; Air Filter Housing, Removing and Installing.
- Left: If equipped, remove the resonator with air filter. Refer to → Rep. Gr.26; Secondary Air Injection System; Secondary Air Injection Pump Motor V101, Removing and Installing.

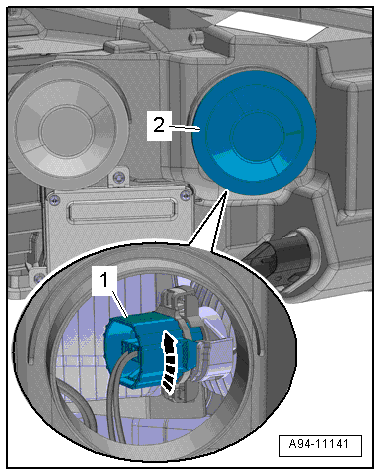

- Remove the housing cover -2- from the headlamp housing.
- Turn the bulb socket -1- in direction of -arrow-.

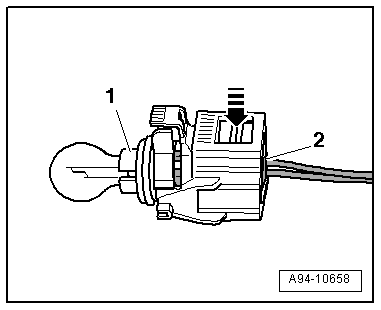

- Press the release downward in direction of -arrow- and disconnect the connector -2- from the lamp -1-.
Installing
Install in reverse order of removal. Note the following:
- Install the new bulb. Be careful not to touch the glass cone with bare hands.
- Close the housing cover.
Left/Right Front Turn Signal Bulb -M5-/-M7-, Removing and Installing, HID Headlamps from MY 2015
Removing
- On the right: remove the air filter housing. Refer to → 6-Cylinder TDI Common Rail 3.0L 4V Engine; Rep. Gr.23; Air Filter; Air Filter Housing, Removing and Installing or → Rep. Gr.24; Air Filter; Air Filter Housing, Removing and Installing.

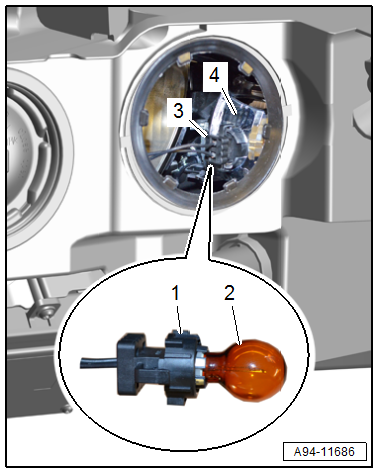

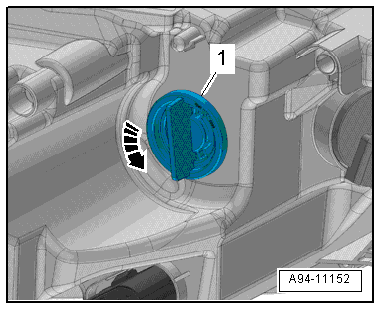

- Turn the housing cover -1- counter-clockwise in direction of -arrow- and remove it from the headlamp housing.
- Remove the bulb socket -3- from the housing -4-.
- Remove the bulb -2- from the bulb socket -1-.
Installing
Install in reverse order of removal. Note the following:
- Install the new bulb. Be careful not to touch the glass cone with bare hands.
- Close the housing cover clockwise.
Left/Right Position Lamp Bulb - M1- / -M3-, Removing and Installing
DANGER!
Damaged high voltage components may produce dangerously high voltage.
Note the following when working near high voltage components and cables:
- Do not use tools that have sharp edges, that are used for cutting or shaping, or that generate heat, such as welding, soldering, hot air or thermal adhesive equipment.
- Inspect the high voltage components in the area where the work will be performed before starting the procedure.
- Perform a visual inspection of the Electric Drive Power and Control Electronics -JX1-, the Electro-Drive Drive Motor -V141-, the Electrical A/C Compressor -V470- and the high voltage cables when working inside the engine compartment.
- Perform a visual inspection of the high voltage cables and the covers when working on the floor panel.
- Perform a visual inspection of the high voltage cables and the electro-box with the High Voltage System Maintenance Connector -TW- when working in the rear of the vehicle.
- Perform a visual inspection of all of the potential equalization cables.
Note the following when performing the visual inspection:
- None of the components may display any exterior damage.
- The high voltage cable insulation and the potential equalization cables may not be damaged.
- The high voltage cables may not be deformed in any way.
- Each high voltage component muss be labeled with a red warning label.
Removing
- On the right: remove the air filter housing. Refer to → 6-Cylinder TDI Common Rail 3.0L 4V Engine; Rep. Gr.23; Air Filter; Air Filter Housing, Removing and Installing or → Rep. Gr.24; Air Filter; Air Filter Housing, Removing and Installing.

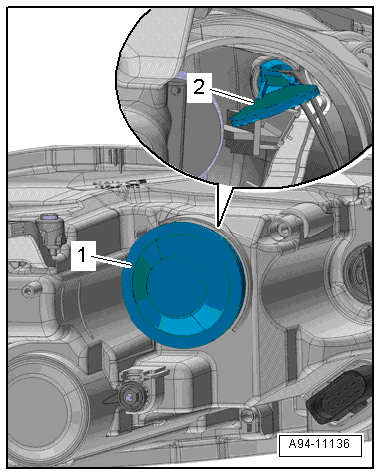

- Remove the housing cover -1- from the headlamp housing.
- Remove the bulb socket -2- from the housing.
- Remove the bulb from the socket.
Installing
Install in reverse order of removal. Note the following:
- Insert the new bulb in the socket. Do not touch the glass bulbs with bare hands.
- Close the housing cover.
