Audi A6 Typ 4G (2011–2018) Workshop Manual / Electrical System / Communication / Sound System / Left/Right Rear Treble Speaker -R14-/-R16-, Removing and Installing

Audi A6 Typ 4G: Left/Right Rear Treble Speaker -R14-/-R16-, Removing and Installing

The Left Rear Treble Speaker -R14-/Right Rear Treble Speaker -R16--1- are inside the rear doors at the top.

Removing and installing is identical.

Removing

- Turn off the ignition and all electrical consumers and remove the ignition key.

- Remove the rear door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

A91-11747

- Release and disconnect the connector from the Left Rear Treble Speaker -R14--1-.

- Turn the Left Rear Treble Speaker -R14--1- in the direction of the -arrow- until it can be removed from the door trim panel.

Installing

- Install in reverse order of removal.

A91-11693

Front Treble Speakers, Removing and Installing

Left/Right Front Treble Speaker -R20-/-R22-, Removing and Installing

The Left Front Treble Speaker -R20--1-/Right Front Treble Speaker -R22--4- are located in the front instrument panel.

Removing and installing is identical.

Removing

- Turn off the ignition and all electrical consumers and remove the ignition key.

- Remove the side speaker trim. Refer to → Body Interior; Rep. Gr.70; Instrument Panel; Speaker Trim, Removing and Installing.

A91-11745

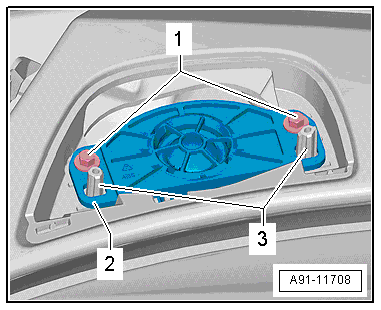

- Remove the screws -1- on the Left Front Treble Speaker -R20--2- and then remove the Left Front Treble Speaker -R20--2- upward from the centering pins -3-.

- Release and disconnect the connector from the Left Front Treble Speaker -R20--2-.

Installing

- Install in reverse order of removal.

A91-11708

Front Treble Speaker -R20-/-V344-/-R22-/-V345-, Removing and Installing, Bang & Olufsen

The Left Front Treble Speaker -R20--1-/Right Front Treble Speaker -R22--4- are located in the front instrument panel.

Removing and installing is identical.

The Left Front Treble Speaker Motor -V344-/Right Front Treble Speaker Motor -V345- is integrated in the Left Front Treble Speaker -R20--1-/Right Front Treble Speaker -R22-. The speaker motors cannot be replaced separately.

Removing

- Turn off the ignition and all electrical consumers and remove the ignition key.

- Remove the side speaker trim. Refer to → Body Interior; Rep. Gr.70; Instrument Panel; Speaker Trim, Removing and Installing.

A91-11745

- Remove the screws -1- on the Left Front Treble Speaker -R20--2- and then remove the Left Front Treble Speaker -R20--2- upward from the centering pins -3-.

- Release and disconnect the connectors from the Left Front Treble Speaker -R20--2-.

Installing

- Install in reverse order of removal.

A91-11709

Rear Midrange Speaker, Removing and Installing

The Left Rear Midrange Speaker -R105-/Right Rear Midrange Speaker -R106--1- are located in the rear doors at the top.

Removing and installing is identical.

Removing

- Turn off the ignition and all electrical consumers and remove the ignition key.

- Remove the rear door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

A91-11747

- Release and disconnect the connector from the Left Rear Midrange Speaker -R105--1-.

- Turn the Left Rear Midrange Speaker -R105--1- in the direction of the -arrow- until it can be removed from the door trim panel.

Installing

- Install in reverse order of removal.

A91-11693

Front Midrange Speakers, Removing and Installing

Left/Right Front Midrange Speaker -R103-/-R104-, Removing and Installing

The Left Front Midrange Speaker -R103-/Right Front Midrange Speaker -R104--1- are located in the center of the front doors.

Removing and installing is identical.

Removing

- Turn off the ignition and all electrical consumers and remove the ignition key.

- Remove the front door trim panel. Refer to → Body Interior; Rep. Gr.70; Front Door Trim Panels; Front Door Trim Panel, Removing and Installing.

A91-11746

- Release and disconnect the connector -2- from the Left Front Midrange Speaker -R103--1-.

- Remove the screws -3-.

- Remove the Left Front Mid-Range Speaker -R103--1-.

Installing

- Install in reverse order of removal.

A91-11690

Left/Right Front Midrange Speaker -R103-/-R104-, Removing and Installing, Bang & Olufsen

The Left Front Midrange Speaker -R103-/Right Front Midrange Speaker -R104--1- are located in the center of the front doors.

Removing and installing is identical.

Both speakers are attached to the Left Front Bass Speaker -R21-/Right Front Bass Speaker -R23- and cannot be replaced separately.

Removing

- Turn off the ignition and all electrical consumers and remove the ignition key.

- Remove the Front Bass Speaker Bang & Olufsen. Refer to → Chapter "Front Bass Speakers -R21-/-R103-/-R23-/-R104-, Removing and Installing, Bang & Olufsen".

A91-11746
