Audi A6 Typ 4G: Night vision assist with pedestrian and wild animal detection

Description

Applies to: vehicles with night vision assist

The night vision assist can detect, highlight and, if necessary, worn about pedestrians and large wild animals.

Night vision assist with pedestrian and wild animal detection assists you at night by using an infrared camera to monitor the area in front of your vehicle, within the limits of the system. It can display objects up to a distance of approximately 1000 feet (300 m). The thermal image detected by the camera is shown in the instrument cluster display. Warm areas appear lighter and cold areas appear darker.

Highlighting detected pedestrians and wild animals

Applies to: vehicles with night vision assist

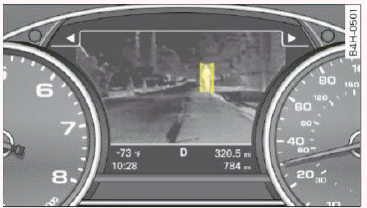

Fig. 109 Instrument cluster: yellow highlighted pedestrians

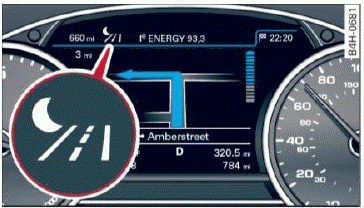

Fig. 110 Instrument cluster: symbol when the infrared image is not visible

Within the Limits of the system, the night vision assist can detect pedestrians and wild animals that are between approximately 32 ft (10 m) and 295 ft (90 m) in front of the vehicle and within the detection zone. Within the limits of the system a pedestrian or wild animal detected when the low beams are switched on is highlighted in yellow fig. 109. Animal recognition is not active within highly developed areas.

The system only detects large wild animals such as deer.

Tips

If another display such as navigation replaces the image from the night vision assist the symbol appears in a tab fig. 110. You can access night vision assist using the multifunction steering wheel buttons.

Pedestrian and wild animal warning

Applies to: vehicles with night vision assist

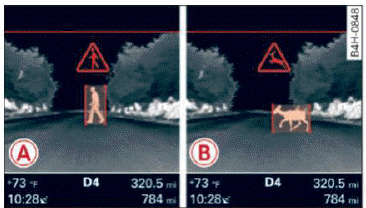

Fig. 111 Instrument cluster: A pedestrian warning, B wild animal warning

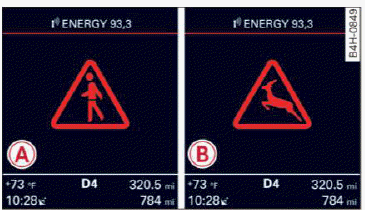

Fig. 112 Instrument cluster: A pedestrian warning/ B wild animal warning, when the night vision assist image is not selected in the instrument cluster display

Image in the instrument cluster/head-up display

If there are pedestrians or wild animals in an area in front of your vehicle that is classified as critical, the system will direct your attention to this:

• Pedestrians or wild animals are highlighted in red and the corresponding symbol or turns on fig. 111.
• There is also an audible signal.

The area classified as critical is based on the vehicle speed and the steering wheel angle. Pedestrian and wild animal warning encourages you to pay more attention.

If the night vision assist image is replaced by another display (such as the on-board computer), the red or indicator light fig. 112 will appear if there is a pedestrian or wild animal warning.

If the head-up display is switched on and the night vision assist content is activated, or will appear in the head-up display.

Marking light

To direct the driver's attention to a pedestrian, the headlights can flash on the pedestrian three times in a row when there is a pedestrian warning.

This occurs at speeds above approximately 35 mph (60 km/h) if you are outside of illuminated areas and no detected vehicles are shown. The high beam assistant controls the marking light.

The marking light is not used for wild animals.

General information

Applies to: vehicles with night vision assist

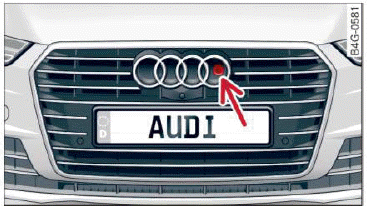

Fig. 113 Front of the vehicle: night vision assistant camera

The following situations may affect the function of the night vision assist system:

• Poor visibility such as snow, rain, fog or heavy spray
• Dirty lens on the night vision assist camera

Make sure the night vision assist camera fig. 113 is not covered by stickers, deposits or any other obstructions because that can affect the camera function. For information on cleaning.

The pedestrian and wild animal recognition depends on the temperature difference between the person/wild animal and the background. People/ wild animals may not be detected if the difference is too small. The pedestrian/wild animal marking and the marking light deactivate at temperatures above approximately 77 ºF (25 ºC) and during daylight. If the night vision assist image is selected in the instrument cluster display, then the symbol appears at the top on the right side.

WARNING

Pay attention to traffic and the area around your vehicle when night vision assist is switched on. The driver is always responsible for assessing the traffic situation.

• Night vision assist can only warn about people and wild animals located within the visual range of the infrared camera. The visual range corresponds to the image in the instrument cluster display.
• Night vision assist may not detect people or wild animals and mark them if
  • they are not in an upright position, for example if they are sitting or lying down and/or
  • the silhouette in the display appears incomplete or interrupted, for example because the person is partially covered by a vehicle or an animal by tall grass. This could increase the risk of an accident.
• Never try to swerve around animals if doing so will endanger you or other road users, because this increases the risk of an accident.

Tips

• Even though the system evaluates the shape and heat given off by all detected objects, there are limits to the system. There may be false warnings.
• For technical reasons, the image pauses in split second intervals.

Switching on/off

Applies to: vehicles with night vision assist

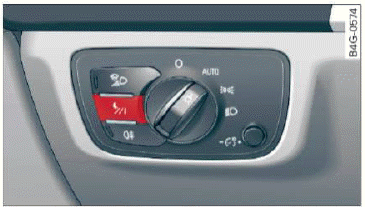

Fig. 114 Area around the light switch: night vision assistant button

Requirement: switch the ignition on and turn the light switch to the AUTO position.

• Press the button fig. 114. The heat image from the night vision camera appears in the instrument cluster display.
• Press the button again to switch the night vision assist off.

If conditions are bright enough, night vision assist can be switched on without moving the light switch to the AUTO position. Pedestrian and wild animal highlighting and warnings are only active when it is dark outside and the headlights are switched on.

Adjusting the contrast

Applies to: vehicles with night vision assist

• Select: the [CAR] function button > (Car) Systems control button > Driver assistance > Night vision assist contrast.

When the night vision assist is switched on and the image is visible in the instrument cluster display, you can adjust the contrast in the image from Min to Max.

Messages

Applies to: vehicles with night vision assist

Night vision assist: System fault

The system cannot guarantee correct function and is switched off. See an authorized Audi dealer or authorized Audi Service Facility for assistance.

Night vision assist: Currently unavailable

The system cannot guarantee correct function at this time and is switched off.

Night vision assist: Only available at night with lights turned on

Night vision assist only works when it is dark outside and the headlights are on.

Night vision assist: Pedestrian marking currently unavailable

The pedestrian and wild animal marking was switched off by the system.
