Audi A6 Typ 4G: Overview - Headlamp

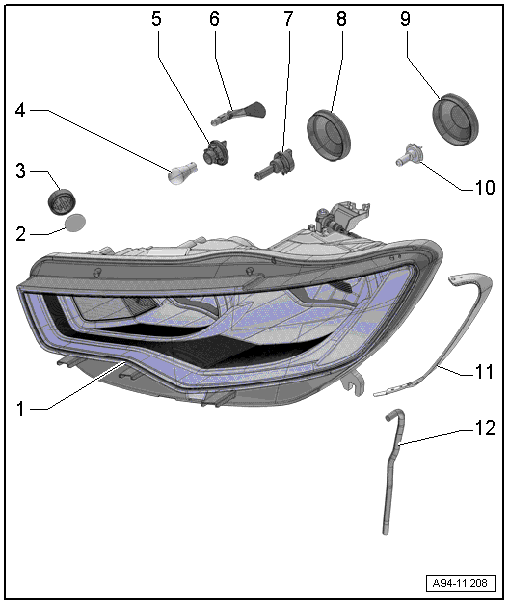

Overview - Headlamp, Halogen Headlamps

1 - Headlamp Housing

• USA: the front side marker lamp bulb is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
• Removing and installing. Refer to → Chapter "Headlamp Housing, Removing and Installing, Halogen Headlamp".

2 - Filter Membrane

• Removing and installing. Refer to → Chapter "Filter Membrane, Removing and Installing, Halogen Headlamp and HID Headlamp through MY 2014".

3 - Ventilation

• For the headlamp housing

4 - Front Turn Signal Bulb

• Left Front Turn Signal Bulb -M5-, Right Front Turn Signal Bulb -M7-
• 12 V, 21 W (WY21W)
• Bulb, replacing. Refer to → Chapter "Left/Right Front Turn Signal Bulb - M5- / -M7-, Removing and Installing, Halogen Headlamps".

5 - Socket

• For the front turn signal lamp

6 - Position Lamp Bulb

• Left Position Lamp Bulb -M1-, Right Position Lamp Bulb -M3-
• 12 V, 5 W (W5W)
• Bulb, replacing. Refer to → Chapter "Left/Right Position Lamp Bulb - M1- / -M3-, Removing and Installing".

7 - Daytime Running Lamp Bulb/High Beam Headlamp Bulb

• Left Daytime Running Lamp Bulb -L174-, Right Daytime Running Lamp Bulb -L175-
• Left High Beam Headlamp Bulb -M30-, Right High Beam Headlamp Bulb -M32-
• 12 V, 15/55 W (H15)
• Bulb, replacing. Refer to → Chapter "Left/Right Daytime Running Lamp Bulb -L174-/-L175-, Left/Right High Beam Headlamp Bulb -M30-/-M32-, Removing and Installing".

8 - Housing Cover

9 - Housing Cover

10 - Low Beam Headlamp Bulb

• Left Low Beam Headlamp Bulb -M29-, Right Low Beam Headlamp Bulb -M31-
• 12 V, 55 W (H7)
• Bulb, replacing. Refer to → Chapter "Low Beam Headlamp Bulb, Removing and Installing".

11 - Sealing Frame

• Removing and installing. Refer to → Chapter "Sealing Frame, Removing and Installing".

12 - Ventilation Hose

• For the headlamp housing

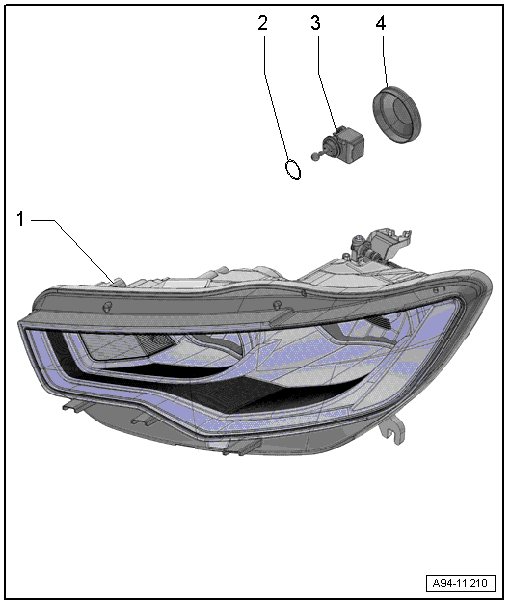

Overview - Headlamps, Headlamp Range Control Positioning Motor Repair Kit, Halogen Headlamp

1 - Headlamp Housing

• Removing and installing. Refer to → Chapter "Headlamp Housing, Removing and Installing, HID Headlamp and LED Headlamp through MY 2014".

2 - Seal

3 - Headlamp Beam Adjustment Motor

• Left Headlamp Beam Adjustment Motor -V48-, Right Headlamp Beam Adjustment Motor -V49-
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing, Halogen Headlamps".

4 - Headlamp Beam Adjustment Motor Housing Cover

• The headlamp housing must be cut open to replace the adjustment motor
• A housing cover can be ordered to seal the assembly opening. Refer to the Parts Catalog.
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing, HID Headlamps through MY 2014".

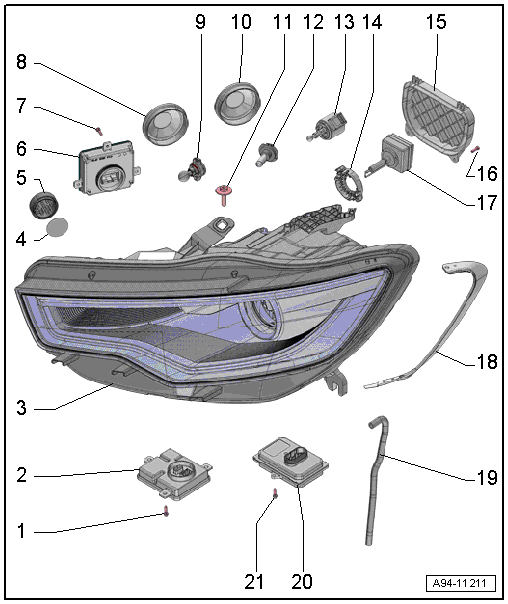

Overview - Headlamp, HID Headlamp through MY 2014

1 - Screw

• 1.5 Nm
• Quantity: 3

2 - HID Headlamp Control Module

• Left HID Headlamp Control Module -J343-, Right HID Headlamp Control Module -J344-
• Removing and installing. Refer to → Chapter "Left/Right HID Headlamp Control Module -J343-/-J344-, Removing and Installing, through MY 2014".

3 - Headlamp Housing

• USA: the front side marker lamp bulb is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
• Removing and installing. Refer to → Chapter "Headlamp Housing, Removing and Installing, HID Headlamp and LED Headlamp through MY 2014".

4 - Filter Membrane

• Removing and installing. Refer to → Chapter "Filter Membrane, Removing and Installing, Halogen Headlamp and HID Headlamp through MY 2014".

5 - Ventilation

• For the headlamp housing

6 - Daytime Running Lamp and Position Lamp Control Module

• Left Daytime Running Lamp and Position Lamp Control Module -J860-, Right Daytime Running Lamp and Position Lamp Control Module -J861-
• Removing and installing. Refer to → Chapter "Left/Right Daytime Running Lamp and Position Lamp Control Module -J860-/-J861-, Removing and Installing, through MY 2014".

7 - Screw

• 1.5 Nm
• Quantity: 3

8 - Housing Cover

9 - Front Turn Signal Bulb

• Left Front Turn Signal Bulb -M5-, Right Front Turn Signal Bulb -M7-
• 12 V, 24 W
• Bulb, replacing. Refer to → Chapter "Left/Right Front Turn Signal Bulb - M5- / -M7-, Removing and Installing, HID Headlamps through MY 2014".

10 - Housing Cover

11 - Screw

• 4.5 Nm

12 - Bulb

• 12 V, 55 W (H7)
• Bulb, replacing. Refer to → Chapter "Left/Right Stationary Cornering Lamp -M51-/-M52-, Left/Right Cornering Lamp Bulb -L148-/-L149-, Removing and Installing, through MY 2014".

Headlamp without adaptive cornering lamp

• Left Stationary Cornering Lamp -M51-, Right Stationary Cornering Lamp -M52-

Headlamp with adaptive cornering lamp

• Left Stationary Cornering Lamp -M51-, Right Stationary Cornering Lamp -M52-

13 - Headlamp Beam Adjustment Motor

• Left Headlamp Beam Adjustment Motor -V48-, Right Headlamp Beam Adjustment Motor -V49-
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing, HID Headlamps through MY 2014".

14 - Adapter Ring

• For HID headlamp bulb

15 - Housing Cover

16 - Screw

• 1.5 Nm
• Quantity: 2

17 - HID Headlamp Bulb

• With integrated ignition coil
• Left HID Headlamp Bulb -L13-, Right HID Headlamp Bulb -L14-
• 42 V, 35 W (D3S)
• Bulb, replacing. Refer to → Chapter "Left/Right HID Headlamp Bulb -L13-/-L14-, Removing and Installing, through MY 2011".

18 - Sealing Frame

• Removing and installing. Refer to → Chapter "Sealing Frame, Removing and Installing".

19 - Ventilation Hose

• For the headlamp housing

20 - Headlamp Power Output Stages

• Only for vehicles with cornering lamps
• Left Headlamp Power Output Stage -J667-, Right Headlamp Power Output Stage -J668-
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Power Output Stage -J667-/-J668-, Removing and Installing".

21 - Screw

• 1.5 Nm
• Quantity: 3

Overview - Headlamp, HID Headlamps from MY 2015

1 - Filter Membrane

• Removing and installing. Refer to → Chapter "Filter Membrane, Removing and Installing, HID Headlamp and LED Headlamp from MY 2015".

2 - Headlamp Housing

• USA: the front side marker lamp bulb is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
• Removing and installing. Refer to → Chapter "Headlamp Housing, Removing and Installing, HID Headlamp and LED Headlamp from MY 2015".

3 - Front Turn Signal Bulb

• Left Front Turn Signal Bulb -M5-, Right Front Turn Signal Bulb -M7-
• 12 V, 24 W
• Bulb, replacing. Refer to → Chapter "Left/Right Front Turn Signal Bulb -M5-/-M7-, Removing and Installing, HID Headlamps from MY 2015".

4 - Housing Cover

5 - Housing Cover

6 - Bulb

• Left Stationary Cornering Lamp -M51-, Right Stationary Cornering Lamp -M52-
• 12 V, 55 W (H7)
• Bulb, replacing. Refer to → Chapter "Left/Right Stationary Cornering Lamp -M51-/-M52-, from MY 2015".

7 - Screw

• 4.5 Nm

8 - HID Headlamp Bulb

• Integrated in Left Hid Headlamp Control Module -J343-
• Integrated in Right Hid Headlamp Control Module -J344-
• Removing and installing. Refer to → Chapter "Left/Right HID Headlamp Control Module -J343-/-J344-, Removing and Installing, from MY 2015".

9 - Housing Cover

10 - Sealing Frame

• Removing and installing. Refer to → Chapter "Sealing Frame, Removing and Installing".

11 - Ventilation Hose

• For the headlamp housing

12 - Daytime Running Lamp and Position Lamp Control Module

• Left Daytime Running Lamp and Position Lamp Control Module -J860-, Right Daytime Running Lamp and Position Lamp Control Module -J861-
• Removing and installing. Refer to → Chapter "Left/Right Daytime Running Lamp and Position Lamp Control Module -J860-/-J861-, Removing and Installing, through MY 2014".

13 - Screw

• 1.5 Nm
• Quantity: 3

Overview - Headlamp, HID Headlamp Repair Kit, from MY 2015

Headlamp Range Control Positioning Motor, Headlamp Housing Bracket

1 - Screw

• 1.8 Nm
• Quantity: 2

2 - Headlamp Housing Inner Bracket

• Replacing. Refer to → Chapter "Headlamp Housing Repair Kit, Installing, HID Headlamp".

3 - Headlamp Housing

4 - Headlamp Housing Upper Bracket

• Replacing. Refer to → Chapter "Headlamp Housing Repair Kit, Installing, HID Headlamp".

5 - Screw

• 1.8 Nm
• Quantity: 2

6 - Headlamp Beam Adjustment Motor

• Left Headlamp Beam Adjustment Motor -V48-, Right Headlamp Beam Adjustment Motor -V49-
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing, HID Headlamps from MY 2015".

7 - Headlamp Beam Adjustment Motor Housing Cover

• The headlamp housing must be cut open to replace the adjustment motor
• A housing cover can be ordered to seal the assembly opening. Refer to the Parts Catalog.
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing, HID Headlamps from MY 2015".

8 - Headlamp Housing Upper Bracket

• Replacing. Refer to → Chapter "Headlamp Housing Repair Kit, Installing, HID Headlamp".

9 - Screw

• 1.8 Nm
• Quantity: 2

10 - Screw

• 1.8 Nm
• Quantity: 2

11 - Headlamp Housing Lower Bracket

• Replacing. Refer to → Chapter "Headlamp Housing Repair Kit, Installing, HID Headlamp".

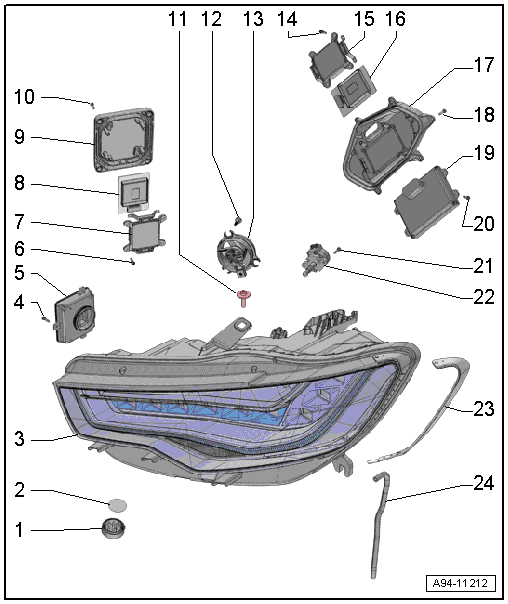

Overview - Headlamp, LED Headlamp through MY 2014

1 - Ventilation

• For the headlamp housing

2 - Filter Membrane

• Removing and installing. Refer to → Chapter "Filter Membrane, Removing and Installing, LED Headlamp through MY 2014".

3 - Headlamp Housing

• USA: the front side marker lamp bulb is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
• Removing and installing. Refer to → Chapter "Headlamp Housing, Removing and Installing, HID Headlamp and LED Headlamp through MY 2014".

4 - Screw

• 1.5 Nm
• Quantity: 3

5 - LED Headlamp Power Output Module 2

• For daytime running lamp/position lamp, turn signal
• Left LED Headlamp Power Output Module 2 -A32-, Right LED Headlamp Power Output Module 2 -A28-
• Removing and installing. Refer to → Chapter "Right and Left LED Headlamp Power Output Module 2 -A28-/-A32-, Removing and Installing, through MY 2014".

6 - Screw

• Quantity: 4
• 1.5 Nm

7 - Frame

• For securing the power output stage

8 - LED Headlamp Power Output Stage 3

• For the static cornering lamp
• Left LED Headlamp Power Output Module 3 -A33-, Right LED Headlamp Power Output Module 3 -A29-
• Removing and installing. Refer to → Chapter "Left/Right LED Headlamp Power Output Module 3 -A29-/- A33-, Removing and Installing".

9 - Housing Cover

10 - Screw

• 1.5 Nm
• Quantity: 4

11 - Screw

• 4.5 Nm

12 - Screw

• 1 Nm
• Quantity: 3

13 - Headlamp Fan

• Left Headlamp Fan -V407-, Right Headlamp Fan -V408-
• Removing and installing. Refer to → Chapter "Left and Right Headlamp Fan -V407-/-V408-, Removing and Installing, through MY 2014".

14 - Screw

• 1.5 Nm
• Quantity: 3

15 - Frame

• For securing the power output stage

16 - Power Output Stage 4 for LED Headlamps

• For turn signal 2
• Country
• Left LED Headlamp Power Output Module 4 -A34-, Right LED Headlamp Power Output Module 4 -A30-
• Removing and installing. Refer to → Chapter "Left/Right LED Headlamp Power Output Module 4 -A34-/-A30-, Removing and Installing".

17 - Housing Cover

18 - Screw

• 1.5 Nm
• Quantity: 6

19 - LED Headlamp Power Output Stage 1

• For the headlamp electronics
• Left LED Headlamp Power Output Module 1 -A31-, Right LED Headlamp Power Output Module 1 -A27-
• Removing and installing. Refer to → Chapter "Right and Left LED Headlamp Power Output Module 1 -A27-/-A31-, Removing and Installing, through MY 2014".

20 - Screw

• 1.5 Nm
• Quantity: 3

21 - Screw

• 1.4 Nm
• Quantity: 2

22 - Headlamp Beam Adjustment Motor

• Left Headlamp Beam Adjustment Motor -V48-
• Right Headlamp Beam Adjustment Motor -V49-
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing, LED Headlamps through MY 2014".

23 - Sealing Frame

• Removing and installing. Refer to → Chapter "Sealing Frame, Removing and Installing".

24 - Ventilation Hose

• For the headlamp housing

Overview - Headlamp, LED Headlamp from MY 2015

1 - Filter Membrane

• Removing and installing. Refer to → Chapter "Filter Membrane, Removing and Installing, HID Headlamp and LED Headlamp from MY 2015".

2 - Headlamp Housing

• USA: the front side marker lamp bulb is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
• Removing and installing. Refer to → Chapter "Headlamp Housing, Removing and Installing, HID Headlamp and LED Headlamp from MY 2015".

3 - Mount

• For LED Headlamp Power Output Stage 1
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing, LED Headlamps from MY 2015".

4 - Screw

• 1.5 Nm
• Quantity: 8

5 - LED Headlamp Power Output Stage 1

• For the headlamp electronics
• Left LED Headlamp Power Output Module 1 -A31-, Right LED Headlamp Power Output Module 1 -A27-
• Removing and installing. Refer to → Chapter "Right/Left LED Headlamp Power Output Module 1-A27-/-A31-, Removing and Installing, from MY 2015".

6 - Screw

• 1.5 Nm
• Quantity: 4

7 - Screw

• 4.5 Nm

8 - Mount

• For headlamp fan
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Fan -V407-/-V408-, Removing and Installing, from MY 2015".

9 - Headlamp Fan

• Left Headlamp Fan -V407-, Right Headlamp Fan -V408-
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Fan -V407-/-V408-, Removing and Installing, from MY 2015".

10 - Screw

• 1.5 Nm

11 - Housing Cover

12 - Screw

• 1.5 Nm
• Quantity: 4

13 - LED Headlamp Power Output Module 2

• For daytime running lamp/position lamp, turn signal
• Left LED Headlamp Power Output Module 2 -A32-, Right LED Headlamp Power Output Module 2 -A28-
• Removing and installing. Refer to → Chapter "Right/Left LED Headlamp Power Output Module 2 -A28-/-A32-, Removing and Installing, from MY 2015".

14 - Screw

• 1.5 Nm
• Quantity: 3

15 - Screw

• 1.5 Nm
• Quantity: 2

16 - Sealing Frame

• Removing and installing. Refer to → Chapter "Sealing Frame, Removing and Installing".

17 - Ventilation Hose

• For the headlamp housing

18 - Headlamp Fan 2

• Left Headlamp Fan 2 -V463-, Right Headlamp Fan 2 -V464-
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Fan 2 -V463-/-V464-, Removing and Installing".

19 - Screw

• 1.5 Nm
• Quantity: 2

20 - Housing Cover

21 - Matrix Headlamp Power Output Stage

• For Audi Matrix LED headlamp
• Left Matrix Headlamp Power Output Stage -A44-, Right Matrix Headlamp Power Output Stage -A45-
• Removing and installing. Refer to → Chapter "Left and Right Matrix Headlamp Power Output Stage -A44-/-A45-, Removing and Installing".

22 - Screw

• 1.5 Nm
• Quantity: 4

Overview - Headlamp, LED Headlamp Repair Kit, from MY 2015

Headlamp Range Control Positioning Motor, Headlamp Housing Bracket

1 - Headlamp Housing

2 - Headlamp Housing Upper Bracket

• Replacing

3 - Screw

• 1.8 Nm
• Quantity: 2

4 - Screw

• 1.8 Nm
• Quantity: 2

5 - Bracket

• For headlamp beam adjustment motor
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing, LED Headlamps from MY 2015".

6 - Headlamp Beam Adjustment Motor

• Left Headlamp Beam Adjustment Motor -V48-, Right Headlamp Beam Adjustment Motor -V49-
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing, LED Headlamps from MY 2015".

7 - Screw

• 1.4 Nm
• Quantity: 2

8 - Grommet

• The headlamp housing must be opened to replace the adjustment motor
• A grommet can be ordered to seal the assembly opening. Refer to the Parts Catalog.
• Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing, LED Headlamps from MY 2015".

READ NEXT:
