Audi A6 Typ 4G (2011–2018) Owner's Manual / Starting and driving / Driving / Selector lever lock

Audi A6 Typ 4G: Selector lever lock

The selector lever lock prevents you from selecting a gear accidentally, causing the vehicle to roll.

Driving

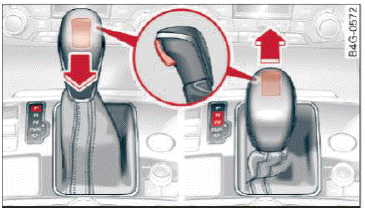

Fig. 84 Selector lever lock

To release the selector lever lock:

  • Switch the ignition on.
  • Press the brake pedal while pressing the interlock button.

Automatic shift lock (ASL)

The selector lever is locked in the P and N positions when the ignition is switched on. The remove it from these positions, the driver must press the brake pedal and press the lock button at the same time. The following message appears in the instrument cluster display when the selector lever is in the P or N position to remind the driver:

Brake pedal must be applied to shift from P

The automatic shift lock only functions when the vehicle is stationary or at speeds below 1 mph (2 km/h). At higher speeds, the lock is automatically deactivated in the N position.

The selector lever is not locked when shifting quickly through N, for example from R to D. This makes it possible to free the vehicle when it is stuck by "rocking" it. The selector lever lock engages if the lever stays in the N position longer than 2 seconds when the brake pedal is not pressed.

Interlock button

The interlock button in the selector lever handle prevents you from moving the selector lever inadvertently while in some selector lever positions.

The positions that require the interlock button to be pressed are marked in color in the illustration fig. 84.
