Audi A6 Typ 4G (2011–2018) Workshop Manual / Chassis / Suspension, Wheels, Steering / Rear Suspension / Wheel Bearing Housing, Removing and Installing

Audi A6 Typ 4G: Wheel Bearing Housing, Removing and Installing

Wheel Bearing Housing, Removing and Installing, FWD Vehicles

Special tools and workshop equipment required

  • Torque Wrench 1332 40-200Nm -VAG1332-
  • Torque Wrench -VAG1410-
  • Grease

Removing

- Remove the rear wheel. Refer to → Chapter "Wheels and Tires".

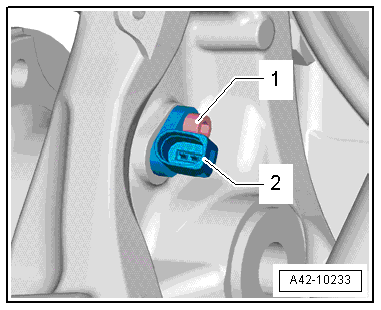

- Disconnect the connector -2- from the rear speed sensor.

- Remove the bolt -1- and the bracket with the wires from the wheel bearing housing.

  Caution

  • Make sure the weight of the removed brake caliper cannot crush or damage the brake hose or brake line.
  • Do not press the brake pedal whenever the brake caliper is removed.

- Remove the brake caliper and the brake rotor (refer to → Brake System; Rep. Gr.46) and then guide the brake rotor past the suspension and secure it to the body.

A42-10472

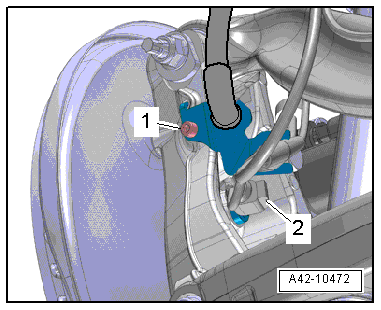

- Remove the bolt -1- and the rear speed sensor -2-.

Vehicles with Steel Suspension

- Remove the coil spring. Refer to → Chapter "Spring, Removing and Installing, Coil Spring".

Vehicles with Air Suspension

- Remove air spring → Chapter "Spring, Removing and Installing, Air Spring".

A42-10233

Continuation for All Vehicles

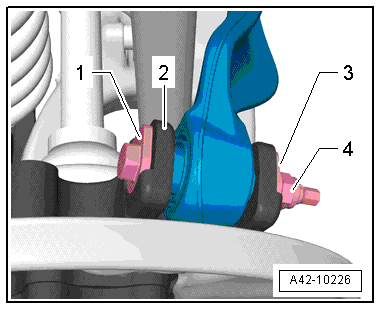

- Mark the installed position of the adjusting screw -1- to the wheel bearing housing -2-.

- Remove the nut -4- and the shim -3-.

- Remove the adjusting screw.

A42-10226

- Remove the bolt -4-.

A42-10471

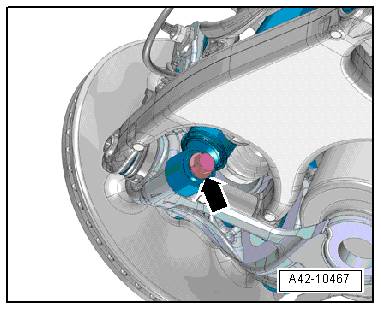

- Remove the bolt -arrow- and the washer between the wheel bearing housing and the shock absorber.

A42-10467

- Remove the nut -3-.

- Remove the bolt -1- and the spacer -2-.

- Remove the wheel bearing housing.

Installing

Install in reverse order of removal. Note the following:

  Note

  • Bonded rubber bushings have a limited range of motion. Only tighten suspension bolts when vehicle is in curb weight or control position.
  • For lifting the wheel bearing into curb weight position, vehicles with steel suspension. Refer to → Chapter "Wheel Bearing in Curb Weight, Lifting Vehicles with Coil Spring".
  • For vehicles with air spring suspension, lift wheel suspension in control position. Refer to → Chapter "Wheel Bearing in Control Position, Lifting Vehicles with Air Suspension".

- Install wheel bearing housing.

A42-10209

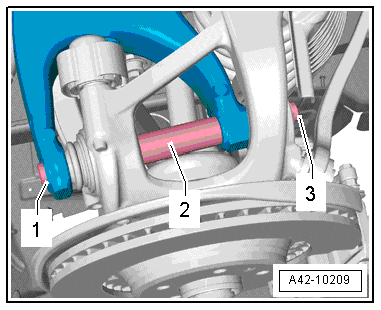

- Insert the bolt -1- with the spacer tube -2- and install the nut -3- loosely.

  Caution

Do not tighten the threaded connection using the nut -3-.

- Tighten the bolt -1-.

- Install the coil spring (refer to → Chapter "Spring, Removing and Installing, Coil Spring") or air spring (refer to → Chapter "Spring, Removing and Installing, Air Spring").

- Install the brake caliper and the brake rotor. Refer to → Brake System; Rep. Gr.46.

- Install the tie rod. Refer to → Chapter "Tie Rod, Removing and Installing".

- Install the upper transverse link. Refer to → Chapter "Upper Transverse Link, Removing and Installing".

- Install the lower transverse link. Refer to → Chapter "Lower Transverse Link, Removing and Installing".

- Install the speed sensor. Refer to → Brake System.

- Install rear wheel. Refer to → Chapter "Wheels and Tires".

- Axle alignment. Refer to → Chapter "Evaluating Need for Axle Alignment".

The axle alignment must be performed on a VW/Audi approved alignment stand.

A42-10209

Wheel Bearing Housing, AWD, Removing and Installing

Special tools and workshop equipment required

  • Torque Wrench 1332 40-200Nm -VAG1332-
  • Torque Wrench -VAG1410-

Removing

- Loosen the connection between the drive axle and wheel hub. Refer to → Chapter "Drive Axle Threaded Connection, Loosening and Tightening".

- Remove the rear wheel. Refer to → Chapter "Wheels and Tires".

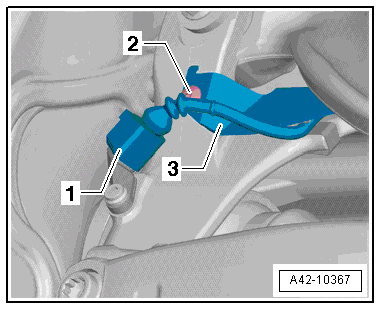

- Disconnect the connector -1- from the Left Rear ABS Wheel Speed Sensor -G46- or the Right Rear ABS Wheel Speed Sensor -G44-.

- Remove the bolt -2- and the bracket with lines -3-, if equipped.

A42-10367

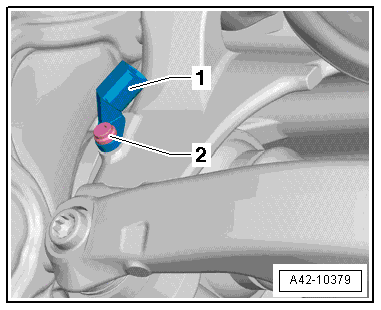

- Remove the bolt -2- and the rear speed sensor -1-.

  Caution

  • Make sure the weight of the removed brake caliper cannot crush or damage the brake hose or brake line.
  • Do not press the brake pedal whenever the brake caliper is removed.

- Remove the brake caliper and brake rotor from the wheel bearing housing and (refer to → Brake System; Rep. Gr.46), guide them past the suspension and secure them to the body.

A42-10379

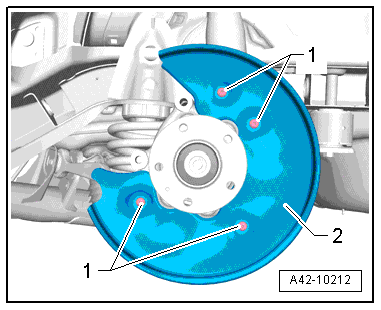

- Remove the bolts -1- and the cover plate -2-.

Vehicles with Steel Suspension

- Remove the coil spring. Refer to → Chapter "Spring, Removing and Installing, Coil Spring".

Vehicles with Air Suspension

- Remove air spring → Chapter "Spring, Removing and Installing, Air Spring".

A42-10212

Continuation for All Vehicles

- Mark the installed position of the adjusting screw -1- to the wheel bearing housing -2-.

- Remove the nut -4- and the shim -3-.

- Remove the adjusting screw.

A42-10226

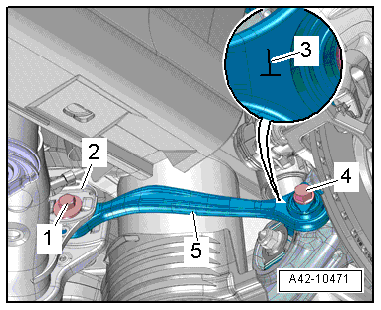

- Remove the bolt -4-.

  Note

Ignore -1, 2, 3 and 5-.

A42-10471

- Remove the bolt -arrow- and the washer between the wheel bearing housing and the shock absorber.

A42-10467

- Remove the nut -3-.

- Remove the bolt -1- and the spacer -2-.

- Tip the wheel bearing housing to the side and remove the drive axle from it.

- Remove the wheel bearing housing.

Installing

Install in reverse order of removal. Note the following:

  Note

  • Bonded rubber bushings have a limited range of motion. Only tighten suspension bolts when vehicle is in curb weight or control position.
  • For lifting the wheel bearing into curb weight position, vehicles with steel suspension. Refer to → Chapter "Wheel Bearing in Curb Weight, Lifting Vehicles with Coil Spring".
  • For vehicles with air spring suspension, lift wheel suspension in control position. Refer to → Chapter "Wheel Bearing in Control Position, Lifting Vehicles with Air Suspension".

- Install wheel bearing housing.

A42-10209

- Insert the bolt -1- with the spacer tube -2- and install the nut -3- loosely.

  Caution

Do not tighten the threaded connection using the nut -3-.

- Tighten the bolt -1-.

- Install the coil spring (refer to → Chapter "Spring, Removing and Installing, Coil Spring") or air spring (refer to → Chapter "Spring, Removing and Installing, Air Spring").

- Install the brake rotor and the brake caliper. Refer to → Brake System; Rep. Gr.46.

- Install the tie rod. Refer to → Chapter "Tie Rod, Removing and Installing".

- Install the upper transverse link. Refer to → Chapter "Upper Transverse Link, Removing and Installing".

- Install the lower transverse link. Refer to → Chapter "Lower Transverse Link, Removing and Installing".

- Install the speed sensor. Refer to → Brake System; Rep. Gr.45.

- Install rear wheel. Refer to → Chapter "Wheels and Tires".

- Tighten the drive axle to wheel hub threaded connection. Refer to → Chapter "Drive Axle Threaded Connection, Loosening and Tightening".

- To determine if an axle alignment is required, see Table. Refer to → Chapter "Evaluating Need for Axle Alignment".

The axle alignment must be performed on a VW/Audi approved alignment stand.

A42-10209
