Audi A6 Typ 4G (2011–2018) Workshop Manual / Body / Body Exterior / Rear Doors / Window Regulator Motor, Removing and Installing

Audi A6 Typ 4G: Window Regulator Motor, Removing and Installing

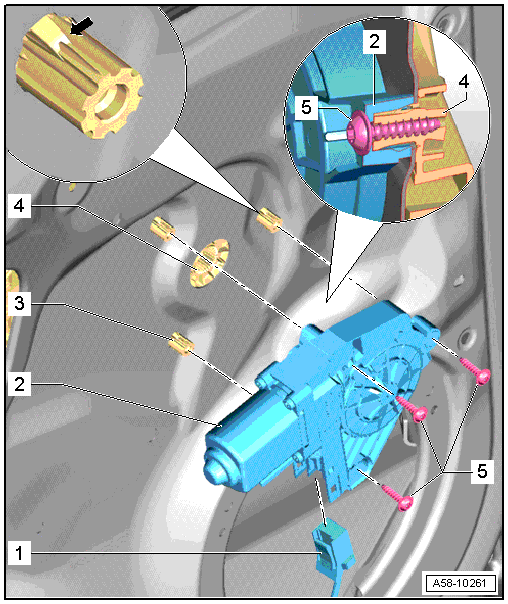

Window Regulator Motor, Removing and Installing

1 - Connector

- Disconnect the connector from the window regulator motor.

2 - Left Rear Window Regulator Motor -V26-

  Note

The window regulator motor can be removed or installed with the motor or door window in any position.

  • Removing:
    • Remove the door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.
    • Remove the screws -6- and remove the window regulator motor from the window regulator.
  • Installing

Install in reverse order of removal. Note the following:

  • The clips-arrow- for the window regulator threaded pins must be locked into the inner door panel.

- Mount the window regulator motor on the threaded pins and tighten the screws -6-.

  Note

  • With the window regulator motor switches connected, switch the ignition on and run the door windows up to the stop.
  • Continue holding the window regulator switch for approximately 2 seconds so the basic setting and one-touch up/down function are activated.

3 - Threaded Pin

4 - Window Regulator

5 - Bolt

  • Tightening specification. Refer to -item 8-.

Window Regulator, Removing and Installing

Removing

- Remove the door window. Refer to → Chapter "Front Door Window, Removing and Installing".

- Remove the power window motor. Refer to → Chapter "Window Regulator Motor, Removing and Installing".

- Remove the retainer -arrows- over the threaded pin -1- for the window regulator, for example, with an 11 mm socket .

A58-10270

- Pry out the plug -1-.

- Loosen the nuts -2- at the top only, remove the nut -4- at the bottom, Counterhold the threaded pin -2- for adjusting the door window while doing this.

- Remove the window regulator -3- back out of the opening in the inner door panel.

A58-10271

Installing

Install in reverse order of removal. Note the following:

- The clips -arrows- for the window regulator motor threaded pins -1- must be engaged in the inner door panel.

A58-10270

Closing Assist Motor, Removing and Installing

Closing Assist Motor, Removing and Installing

1 - Left Rear Closing Assist Motor -V307-

  • Removing
    • Remove the door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.
    • Disconnect the connector from the motor.
    • Remove the bolts from the motor.
    • Guide the release cable out of the cable winder.
  • Installing
    • When installing, first insert the cable end into the cable winder.
    • Place the cable 360º inside the groove in the cable winder.
    • Install the cable -arrows- into the motor.
    • Tighten the motor.

2 - Release Cable

3 - Inner Door Panel Cover

4 - Bolt

  • 3 Nm

Door Inner Cover, Removing and Installing

  Note

The illustration shows the cover for a vehicle with close assist and locks that have to be released before removing.

Door Inner Cover, Removing and Installing

1 - Cover

Vehicle without Close Assist

- Remove the door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

- Remove the electric wires from the clamps -5-.

- When removing the cover, always start at the top.

Vehicle with Closing Aid

- Remove the door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

- Disconnect the voltage supply to the closing assist motor

- Open the releases (quantity: 5) turning them to the left and remove the cover from the inner door panel.

2 - Grommet with Cable

  Caution

Do not bend the cables when installing them.

  • When installing, it must fit correctly -arrows-.

3 - Inside Door Release Mechanism Release

4 - Release (Quantity: 5)

- Turn the cover to the left to unlock it.

- Must click into the place when being installed.

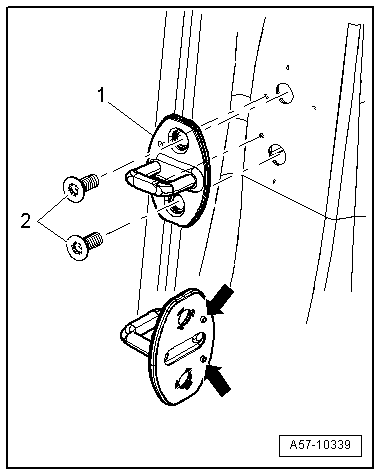

Catch, Removing and Installing

Removing

- Remove the bolts -2- and the catch -1-.

Installing

Install in reverse order of removal.

  Note

  • The striker pin backing must be position with the pins -arrows- exactly in the hole.
  • The striker pins must be sheared off cleanly after sliding the striker pin.
  • If a new part is being installed, then remove the sheared off pins from the striker pin.

- Adjust the catch. Refer to → Chapter "Catch, Adjusting".

A57-10339
