Audi A6 Typ 4G: A6 Rims, Type 4G
WARNING
The following information applies only to the Audi
A6 model, type 4G, sedan and Avant (not for the A6
allroad). Not for Audi A7 Type 4G.
- 19" or larger wheels may only be installed if they
are listed in the vehicle documentation.
- If installing 19" or larger wheels, an additional
tank protective cover must be installed.
- If the vehicle was delivered with 19" or larger
wheels, this tank protective cover is already installed.
- If the vehicle was delivered with 18" or smaller
wheels, then wheels 19" or larger may not be installed.
![A6 Rims, Type 4G](images/books/245/index25(1).png)
Caution
Type 4F rims cannot be combined with type 4G rims.
- Type 4G inner diameter 66.5 mm, hole circle 112 mm,
5 wheel bolts, tightening specification 120 Nm
- Type 4F inner diameter 57 mm, hole circle 112 mm, 5
wheel bolts, tightening specification 120 Nm
General Information
WARNING
The following information applies only to the Audi
A6 model, type 4G, sedan and Avant (not for the A6
allroad). Not for Audi A7 Type 4G.
- 19" or larger wheels may only be installed if they
are listed in the vehicle documentation.
- If installing 19" or larger wheels, an additional
tank protective cover must be installed.
- If the vehicle was delivered with 19" or larger
wheels, this tank protective cover is already installed.
- If the vehicle was delivered with 18" or smaller
wheels, then wheels 19" or larger may not be installed.
Rim 7.5 J x 16
![Rim 7.5 J x 16](images/books/245/index26(1).png)
Note the general information. Refer to
→ Chapter "General Information".
Note
Not permitted with 17" PR 1LJ, 1LL brakes.
![Rim 7.5 J x 16](images/books/245/index27(1).png)
Note
Not permitted with 17" PR 1LJ, 1LL brakes.
![Rim 7.5 J x 16](images/books/245/index28(1).png)
7.5 J x 17 Rim
![7.5 J x 17 Rim](images/books/245/index29(1).png)
Note the general information. Refer to
→ Chapter "General Information".
![7.5 J x 17 Rim](images/books/245/index210(1).png)
Rim 8.0J x 17
![Rim 8.0J x 17](images/books/245/index211(1).png)
Note the general information. Refer to
→ Chapter "General Information".
Note
- The part number and illustration of the following rims are
examples. Refer to the "Parts Catalog" for assistance to order
the correct rims.
- Pay attention when installing Audi original
accessories-wheels to the notes in the "Parts Catalog".
![Rim 8.0J x 17](images/books/245/index212(2).png)
7.5 J x 18 Rim
![7.5 J x 18 Rim](images/books/245/index213(1).png)
Note the general information. Refer to
→ Chapter "General Information".
![7.5 J x 18 Rim](images/books/245/index214(1).png)
Rim 8.0J x 18
![Rim 8.0J x 18](images/books/245/index215(1).png)
Note the general information. Refer to
→ Chapter "General Information".
Note
- The part number and illustration of the following rims are
examples. Refer to the "Parts Catalog" for assistance to order
the correct rims.
- Pay attention when installing Audi original
accessories-wheels to the notes in the "Parts Catalog".
![Rim 8.0J x 18](images/books/245/index216(2).png)
Rim 8.5J x 19
![Rim 8.5J x 19](images/books/245/index217(2).png)
Note the general information. Refer to
→ Chapter "General Information".
Note
- The part number and illustration of the following rims are
examples. Refer to the "Parts Catalog" for assistance to order
the correct rims.
- Pay attention when installing Audi original
accessories-wheels to the notes in the "Parts Catalog".
![Rim 8.5J x 19](images/books/245/index218(2).png)

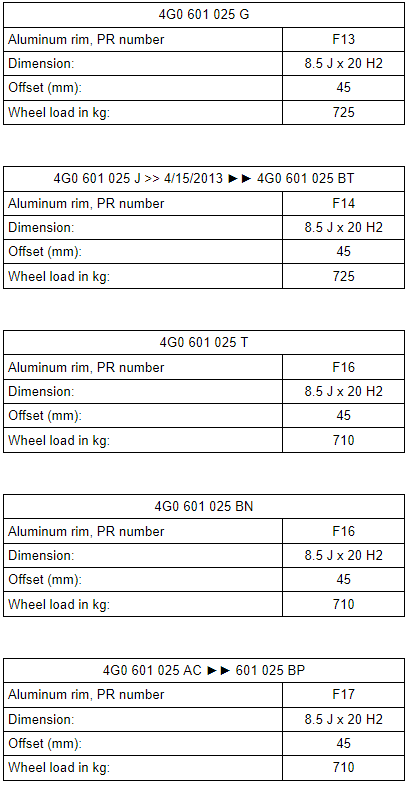

Rim 8.5J x 20
![Rim 8.5J x 20](images/books/245/index219(2).png)
Note the general information. Refer to
→ Chapter "General Information".
Note
- The part number and illustration of the following rims are
examples. Refer to the "Parts Catalog" for assistance to order
the correct rims.
- Pay attention when installing Audi original
accessories-wheels to the notes in the "Parts Catalog".
![Rim 8.5J x 20](images/books/245/index220(2).png)
Recommended Tires A6, Type 4G

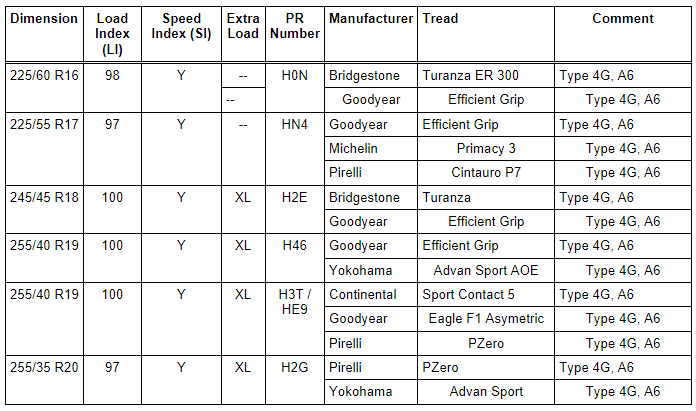

Recommended Summer Tires, A6
Note the general information. Refer to
→ Chapter "General Information".
![Recommended Summer Tires, A6](images/books/245/index221(2).png)
Recommended All Season Tires
Note the general information. Refer to
→ Chapter "General Information".
![Recommended All Season Tires](images/books/245/index222(2).png)
Recommended Winter Tires, A6
Note the general information. Refer to
→ Chapter "General Information".
![Recommended Winter Tires, A6](images/books/245/index223(1).png)
