Audi A6 Typ 4G: Acceptable Tread Depth Variance
Model with Longitudinally Installed Engine
Tread variance for models with a longitudinally installed
engine, such as A4, A5, A6, A7, A8, Q5, Q7, ...
The variance between the front and rear axle in this case
may not be more then 2 mm
Note
The technical background of the limitations are thermal
pressure for the transmission oil due to a large difference in
the rolling circumference of the tires.
- For all four wheels use only tires of the same construction
type and tread.
- Always use tires with the deepest tread depth on the front
axle.
- It is possible to change tires individually. However, Audi
recommends changing tires on both sides.
- With sport differential on the rear axle, Audi recommends
always replacing the tires on both sides of the rear axle.
![Acceptable Tread Depth Variance](images/books/245/index23(2).png)

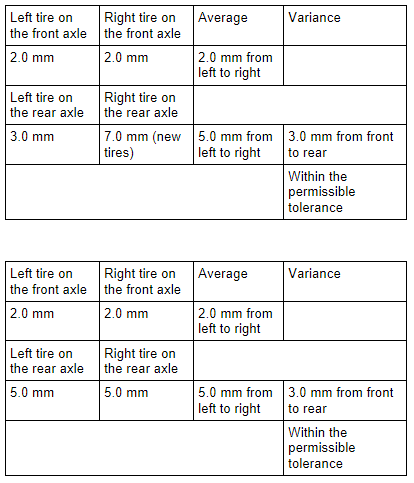

Models with Transverse Installed Engine
Note
- Tread depth variance for models with crossways installed
engine, such as A3, TT, Q3, A1, ...
- The variance between the front and rear axle in this case
may not be more then 3 mm
Note
The technical background of the limitations are thermal
pressure for the transmission oil due to a large difference in
the rolling circumference of the tires.
- For all four wheels use only tires of the same construction
type and tread.
- Always use tires with the deepest tread depth on the front
axle.
- It is possible to change tires individually. However, Audi
recommends changing tires on both sides.
- With sport differential on the rear axle, Audi recommends
always replacing the tires on both sides of the rear axle.
![Models with Transverse Installed Engine](images/books/245/index24(3).png)
Recommended Snow Chains
Recommended Snow Chains - RUD
Recommended Snow Chains - RUD - 14 Inches
![Recommended Snow Chains](images/books/245/index25(3).png)

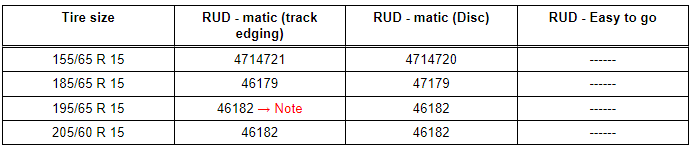

Recommended Snow Chains - RUD - 15 Inches
![Recommended Snow Chains](images/books/245/index26(3).png)
1) and Avant RS 4 (Type 8E)

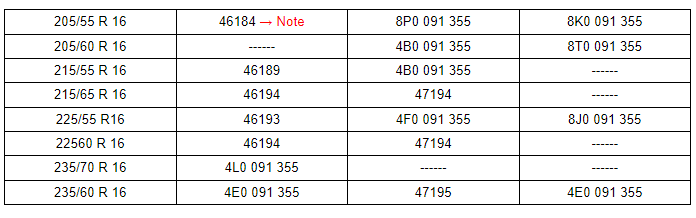

Recommended Snow Chains - RUD - 16 Inches
![Recommended Snow Chains](images/books/245/index27(3).png)
1) and Avant RS 2

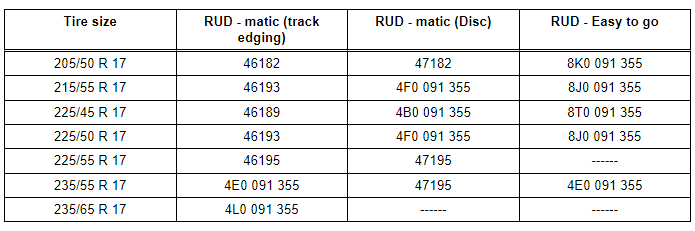

Recommended Snow Chains - RUD - 17 Inches
![Recommended Snow Chains](images/books/245/index28(3).png)

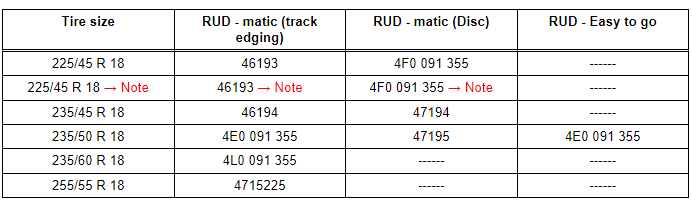

Recommended Snow Chains - RUD - 18 Inches
![Recommended Snow Chains](images/books/245/index29(3).png)
1) and A4 (Type 8K and 8T)

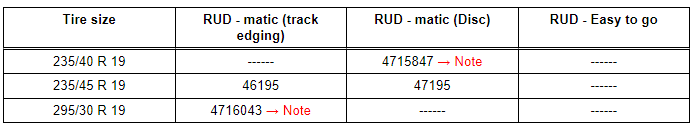

Recommended Snow Chains - RUD - 19 Inches
![Recommended Snow Chains](images/books/245/index210(3).png)
1) R8 rear axle
2) and RS 4 (type 8E)
Recommended Snow Chains - RUD - 20 Inches
![Recommended Snow Chains](images/books/245/index211(3).png)
1) Q7 12-cylinder rear axle
Recommended Snow Chains - König (King)
Recommended Snow Chains - König (King) - 14 Inches
![Recommended Snow Chains - König (King)](images/books/245/index212(4).png)

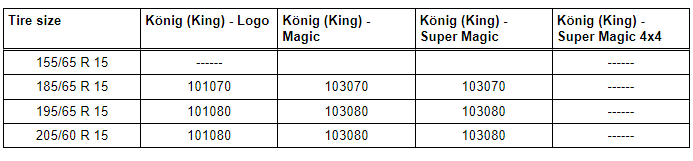

Recommended Snow Chains - König (King) - 15 Inches
![Recommended Snow Chains - König (King)](images/books/245/index213(3).png)

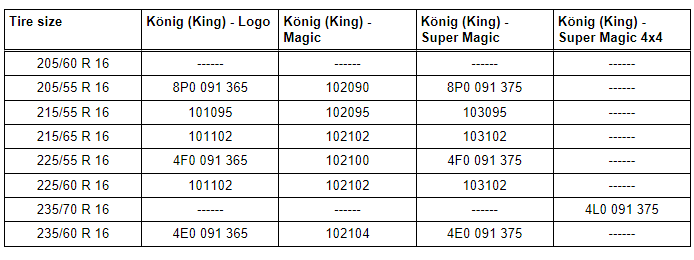

Recommended Snow Chains - König (King) - 16 Inches
![Recommended Snow Chains - König (King)](images/books/245/index214(3).png)

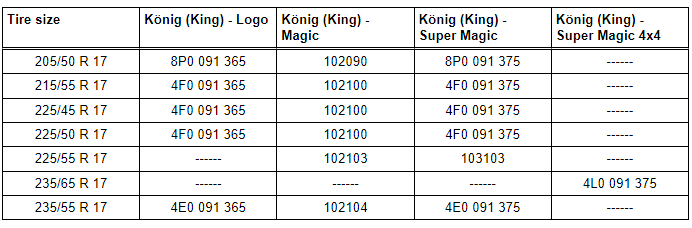

Recommended Snow Chains - König (King) - 17 Inches
![Recommended Snow Chains - König (King)](images/books/245/index215(3).png)

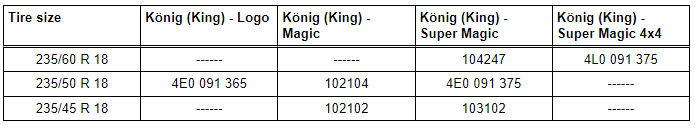

Recommended Snow Chains - König (King) - 18 Inches
![Recommended Snow Chains - König (King)](images/books/245/index216(4).png)
Recommended Snow Chains - König (King) - 19 Inches
![Recommended Snow Chains - König (King)](images/books/245/index217(4).png)
