Audi A6 Typ 4G: Overview - Front Seat Heating Element

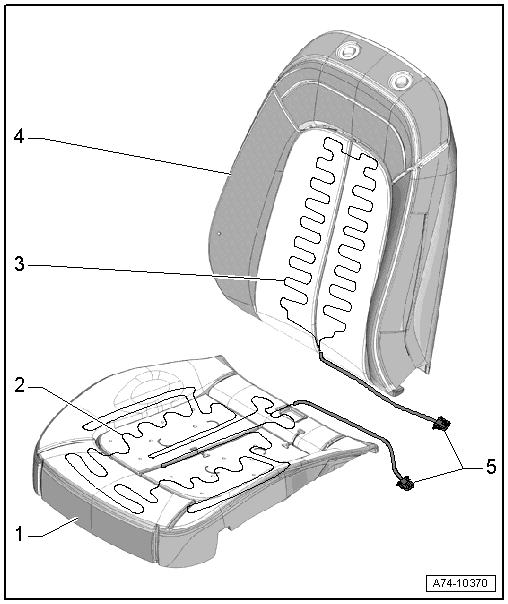

Overview - Seat Heating Element, Standard Seat/Sport Seat
![Overview - Seat Heating Element, Standard Seat/Sport Seat](images/books/245/A74-10370.png)
1 - Seat Cushion
- Allocation. Refer to the Parts Catalog.
2 - Driver Seat Heating Element -Z6-
- Passenger side: Front Passenger Seat Heating Element -Z8-
- Removing and installing. Refer to
→ Chapter "Driver Seat Heating Element -Z6-/Front Passenger Seat Heating
Element -Z8-, Removing and Installing".
- Allocation. Refer to the Parts Catalog.
3 - Driver Backrest Heating Element -Z7-
- Passenger side: Front Passenger Backrest Heating Element -Z9-
- Removing and installing. Refer to
→ Chapter "Driver Backrest Heating Element -Z7-/Front Passenger Backrest
Heating Element -Z9-, Removing and Installing".
- Allocation. Refer to the Parts Catalog.
4 - Backrest Cushion
- Allocation. Refer to the Parts Catalog.
5 - Wire

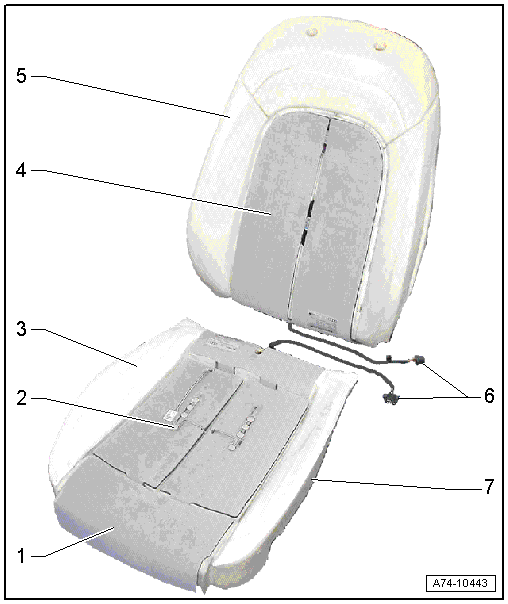

Overview - Seat Heating Element, Seat Ventilation
![Overview - Seat Heating Element, Seat Ventilation](images/books/245/A74-10443.png)
1 - Driver Seat Heating Element -Z6-
- Passenger side: Front Passenger Seat Heating Element -Z8-
- Removing and installing. Refer to
→ Chapter "Driver Seat Heating Element -Z6-/Front Passenger Seat Heating
Element -Z8-, Removing and Installing".
- Allocation. Refer to the Parts Catalog.
2 - Front Passenger Occupant Detection Sensor -G128-
- Market-specific: Passenger Occupant Detection System Pressure Sensor
-G452-
- Vehicles version front passenger side only
- Removing and installing. Refer to
→ Chapter "Front Passenger Occupant Detection Sensor -G128-, Removing
and Installing".
3 - Seat Bolster Heating
- Allocation. Refer to the Parts Catalog.
4 - Driver Backrest Heating Element -Z7-
- Passenger side: Front Passenger Backrest Heating Element -Z9-
- Removing and installing. Refer to
→ Chapter "Driver Backrest Heating Element -Z7-/Front Passenger Backrest
Heating Element -Z9-, Removing and Installing".
- Allocation. Refer to the Parts Catalog.
5 - Backrest Cushion
- Allocation. Refer to the Parts Catalog.
6 - Wire
7 - Seat Cushion
- Allocation. Refer to the Parts Catalog.

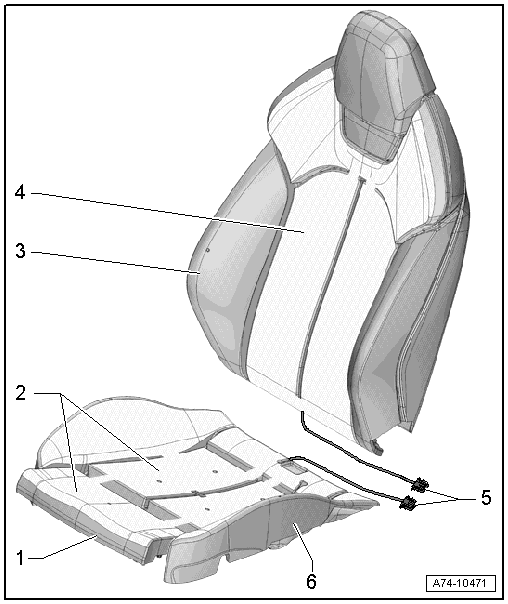

Overview - Seat Heating Element, Super Sport Seat
![Overview - Seat Heating Element, Super Sport Seat](images/books/245/A74-10471.png)
1 - Seat Cushion
- For seat depth adjustment
- Allocation. Refer to the Parts Catalog.
2 - Driver Seat Heating Element -Z6-
- Passenger side: Front Passenger Seat Heating Element -Z8-
- Removing and installing. Refer to
→ Chapter "Driver Seat Heating Element -Z6-/Front Passenger Seat Heating
Element -Z8-, Removing and Installing".
- Allocation. Refer to the Parts Catalog.
3 - Backrest Cushion
- Allocation. Refer to the Parts Catalog.
4 - Driver Backrest Heating Element -Z7-
- Passenger side: Front Passenger Backrest Heating Element -Z9-
- Removing and installing. Refer to
→ Chapter "Driver Backrest Heating Element -Z7-/Front Passenger Backrest
Heating Element -Z9-, Removing and Installing".
- Allocation. Refer to the Parts Catalog.
5 - Wire
6 - Seat Cushion
- Allocation. Refer to the Parts Catalog.

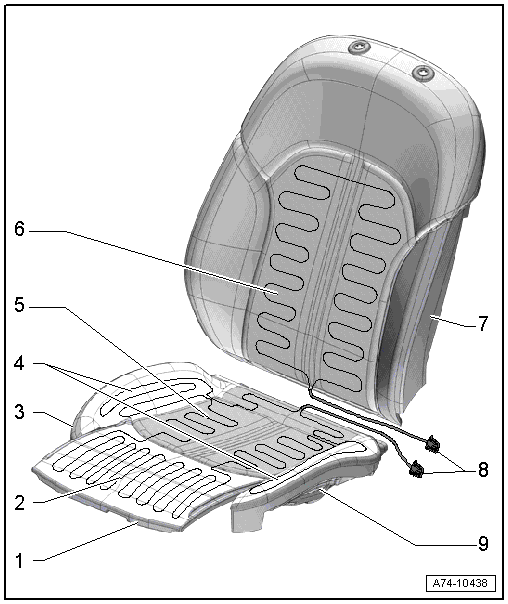

Overview - Seat Heating Element, Multi-contour Seat
![Overview - Seat Heating Element, Multi-contour Seat](images/books/245/A74-10438.png)
1 - Seat Cushion
- Allocation. Refer to the Parts Catalog.
2 - Heating Element
- For leg rest
- Bonded with seat cushion and joined to heating element in the seat
cover; if defective, replace seat cover
→ Chapter "Seat Pan Cover and Cushion, Separating, Multi-contour Seat"
3 - Seat Bolster Cushion
- Allocation. Refer to the Parts Catalog.
4 - Driver Seat Bolster Heater -Z31-
- Front passenger side: Front Passenger Seat Bolster Heater -Z33-
- The heating element is glued to the seat bolster cushion
- Removing and installing. Refer to
→ Chapter "Seat Pan Seat Bolster Cushion, Removing and Installing,
Multi-contour Seat".
- Allocation. Refer to the Parts Catalog.
5 - Driver Seat Heating Element -Z6-
- Passenger side: Front Passenger Seat Heating Element -Z8-
- Heating element sewn into seat cover; if faulty, replace the seat
cover. Refer to
→ Chapter "Seat Pan Cover and Cushion, Separating, Multi-contour Seat".
- Allocation. Refer to the Parts Catalog.
6 - Driver Backrest Heating Element -Z7-
- Passenger side: Front Passenger Backrest Heating Element -Z9-
- Heating element sewn into backrest cover; if faulty, replace
backrest cover. Refer to
→ Chapter "Backrest Cover and Cushion, Separating".
- Allocation. Refer to the Parts Catalog.
7 - Backrest Cushion
- Allocation. Refer to the Parts Catalog.
8 - Wire
9 - Seat Bolster Cushion
- Allocation. Refer to the Parts Catalog.
