Audi A6 Typ 4G (2011–2018) Workshop Manual / Body / Body Interior / Seat Frames / Overview - Headrest and Headrest Guide

Audi A6 Typ 4G: Overview - Headrest and Headrest Guide

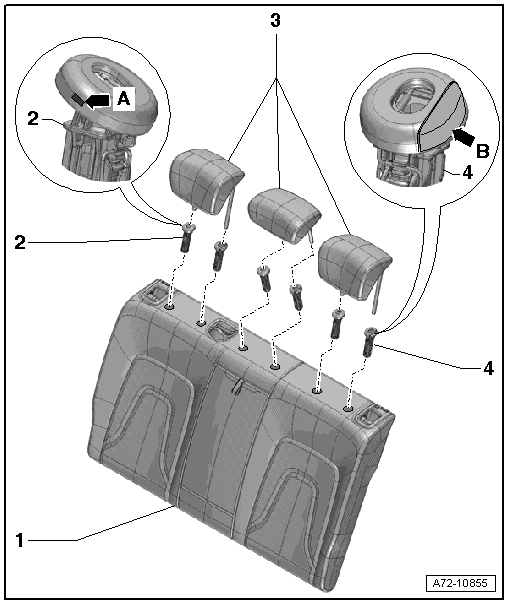

Overview - Headrest and Headrest Guide, Standard Seat/Sport Seat

Overview - Headrest and Headrest Guide, Standard Seat/Sport Seat

1 - Rear Seat Backrest

2 - Headrest Guide

  • With securing spring -arrow A-
  • Always installed on the rear seat backrest on the right side
  • Removing and installing. Refer to → Chapter "Headrest Guide, Removing and Installing, Standard/Sport Seat/Super Sport Seat".

3 - Head Restraint

  • Removing and installing. Refer to → Chapter "Headrest, Removing and Installing, Standard/Sport Seat".
  • Must be locked in the headrest guides

4 - Headrest Guide

  • With headrest height adjustment button -arrow B-
  • Always installed on the rear seat backrest on the left side
  • Removing and installing. Refer to → Chapter "Headrest Guide, Removing and Installing, Standard/Sport Seat/Super Sport Seat".

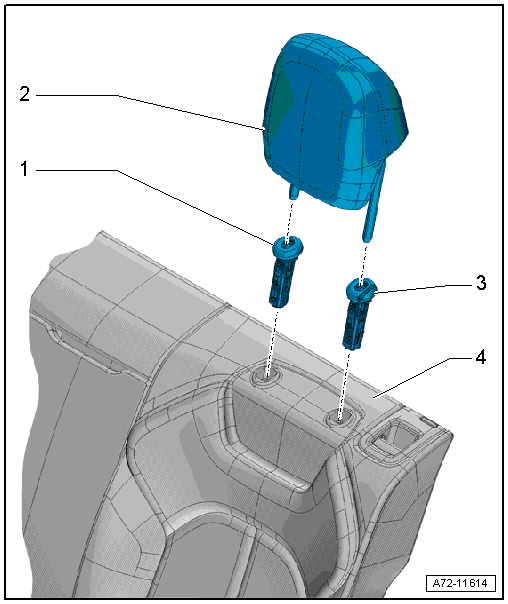

Overview - Headrest and Headrest Guide, Super Sport Seat

Overview - Headrest and Headrest Guide, Super Sport Seat

1 - Headrest Guide

  • With locking spring
  • Always installed on the rear seat backrest on the right side
  • Removing and installing. Refer to → Chapter "Headrest Guide, Removing and Installing, Standard/Sport Seat/Super Sport Seat".

2 - Headrest

  • Removing and installing. Refer to → Chapter "Headrest, Removing and Installing, Super Sport Seat".
  • Must be locked in the headrest guides

3 - Headrest Guide

  • With release button
  • Always installed on the rear seat backrest on the left side
  • Removing and installing. Refer to → Chapter "Headrest Guide, Removing and Installing, Standard/Sport Seat/Super Sport Seat".

4 - Rear Seat Backrest

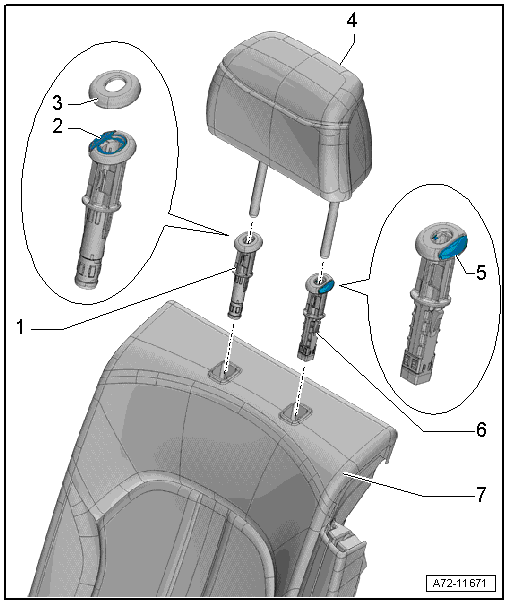

Overview - Headrest and Headrest Guide, Multi-contour Seat

Overview - Headrest and Headrest Guide, Multi-contour Seat

1 - Headrest Guide

  • With release button
  • Always installed on the right side of the backrest
  • Removing and installing. Refer to → Chapter "Headrest Guide, Removing and Installing, Multi-contour Seat".

2 - Release Button

  • Under the cap -3-

3 - Cap

  • Press on until it engages audibly

4 - Headrest

  • Removing and installing. Refer to → Chapter "Headrest, Removing and Installing, Multi-contour Seat".

5 - Release Button

6 - Headrest Guide

  • With the headrest height adjustment button
  • Always installed on the left side of the backrest
  • Removing and installing. Refer to → Chapter "Headrest Guide, Removing and Installing, Multi-contour Seat".

7 - Rear Seat Backrest
