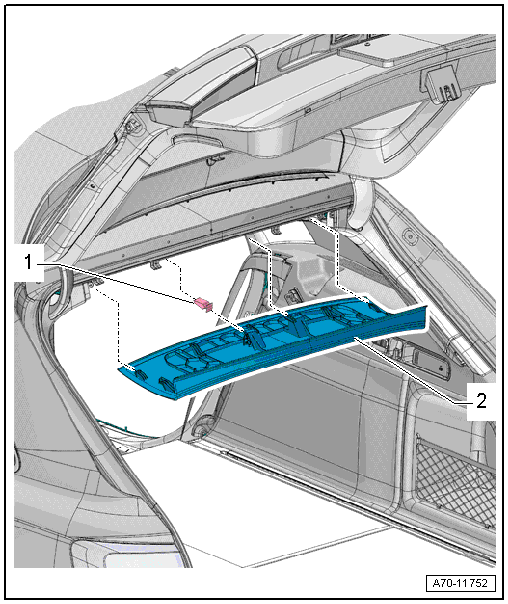

Audi A6 Typ 4G: Overview - Roof End Strip
![Overview - Roof End Strip](images/books/245/A70-11752.png)
1 - Clip
- Quantity: 2
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the
Omega Clip Tool -T40280-. To install, insert into the trim panel.
- Replace damaged or deformed clips
2 - Roof Panel Trim
- Removing and installing. Refer to
→ Chapter "Roof End Strip, Removing and Installing".
- Press on until it engages audibly
- Stretch the rear lid seal lip
Overview - Headliner

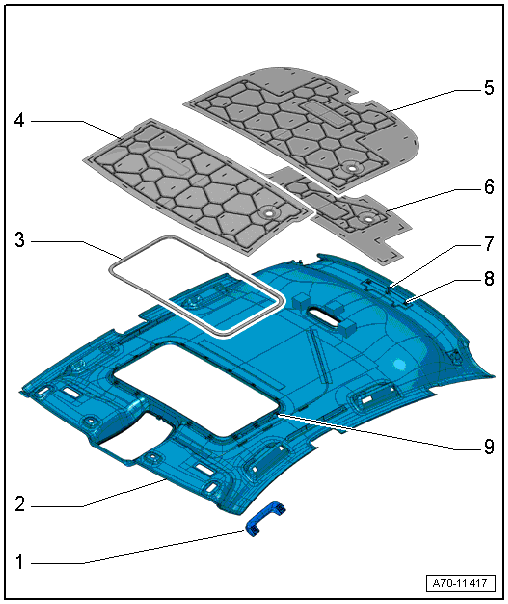

Overview - Headliner, Sedan
![Overview - Headliner, Sedan](images/books/245/A70-11417.png)
1 - Roof Grab Handle
- Quantity: 4
- Removing and installing. Refer to
→ Chapter "Roof Grab Handle, Removing and Installing".
- Press the expanding caps until they lock completely.
2 - Headliner
For vehicles:
- Without a sunroof
- With sunroof
- Removing and installing. Refer to
→ Chapter "Headliner, Removing and Installing, Sedan".
Caution
- The headliner bends easily.
- Replace the headliner if it is bent.
3 - Cover Frame
- Only for version equipped with sunroof
4 - Front Roof Reinforcement
- For vehicles without a sunroof
- For attaching to the body. Refer to
→ Chapter "Roof Reinforcement, Attaching to Body, Sedan without Sunroof".
5 - Rear Roof Reinforcement
- For vehicles without a sunroof
- For attaching to the body. Refer to
→ Chapter "Roof Reinforcement, Attaching to Body, Sedan without Sunroof".
6 - Rear Roof Reinforcement
- For vehicles with sunroof
- For attaching to the body. Refer to
→ Chapter "Roof Reinforcement, Attaching to Body, Sedan with Sunroof".
7 - Centering Piece
8 - Clip
- Quantity: 4
- Insert in the headliner
- Remove clips left in the mounting points of the body using the Omega
Clip Tool -T40280- and use for installation in the headliner
- Replace damaged or deformed clips
9 - Clip
- For vehicles with sunroof
- Quantity: 15
- Insert in the headliner
- Remove clips left in the mounting points of the body and use for
installation in the headliner
- Replace damaged or deformed clips

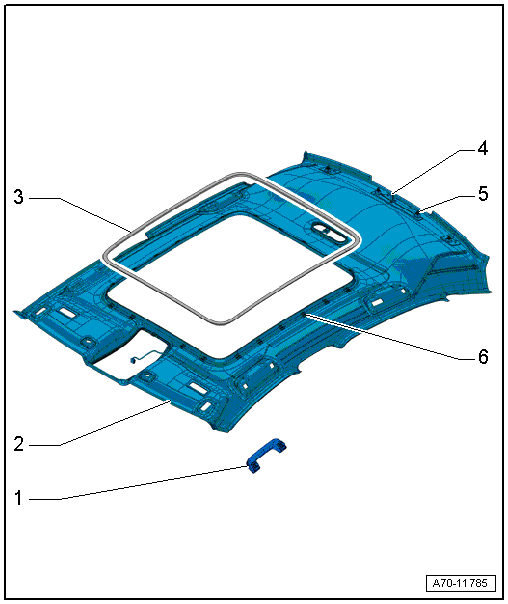

Panorama Roof with Headliner
![Panorama Roof with Headliner](images/books/245/A70-11785.png)
1 - Roof Grab Handle
- Quantity: 4
- Removing and installing. Refer to
→ Chapter "Roof Grab Handle, Removing and Installing".
- Press the expanding caps until they lock completely.
2 - Headliner
- Removing and installing. Refer to
→ Chapter "Headliner, Removing and Installing, Sedan".
Caution
- The headliner bends easily.
- Replace the headliner if it is bent.
3 - Cover Frame
4 - Centering Piece
5 - Clip
- Quantity: 4
- Insert in the headliner
- Remove clips left in the mounting points of the body using the Omega
Clip Tool -T40280- and use for installation in the headliner
- Replace damaged or deformed clips
6 - Clip
- Quantity 21
- Insert in the headliner
- Remove clips left in the mounting points of the body and use for
installation in the headliner
- Replace damaged or deformed clips

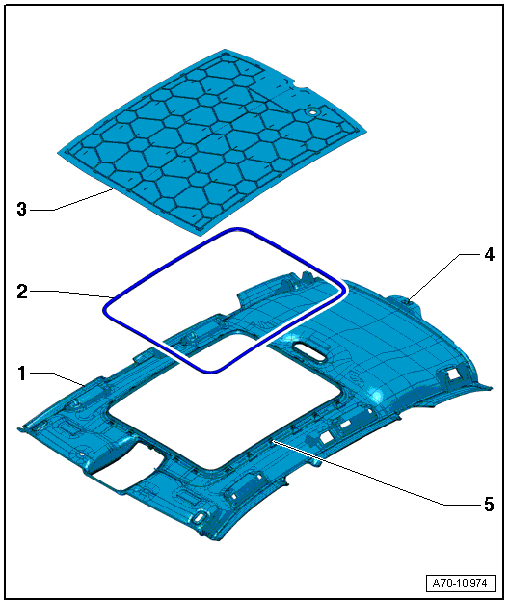

Overview - Headliner, Avant
![Overview - Headliner, Avant](images/books/245/A70-10974.png)
1 - Headliner
Vehicles with:
- Without a sunroof
- With sunroof
- Removing and installing. Refer to
→ Chapter "Headliner, Removing and Installing, Avant".
Caution
- The headliner bends easily.
- Replace the headliner if it is bent.
2 - Cover Frame
- Only on version equipped with a sunroof
- The marking points to the rear of the vehicle
- Press on until it engages audibly
3 - Roof Reinforcement
- Only on versions without a sunroof
- For attaching to the body. Refer to
→ Chapter "Roof Reinforcement, Attaching to Body, Avant without Sunroof".
4 - Centering Clip
- Press on until it engages audibly
5 - Clip
- For vehicles with sunroof
- Quantity 21
- Insert in the headliner
- Remove any clips still in the cover frame using the Omega Clip Tool
-T40280- and use them to install the headliner
- Replace damaged or deformed clips
