Audi A6 Typ 4G: Audi A6, Type 4G, Sedan and Avant

Audi A6, Type 4G, MY 2011 to 2015

  Caution

Type 4F rims cannot be combined with type 4G rims.

• Type 4G inner diameter 66.5 mm, hole circle 112 mm, 5 wheel bolts, tightening specification 120 Nm
• Type 4F inner diameter 57 mm, hole circle 112 mm, 5 wheel bolts, tightening specification 120 Nm

Read and Observe General Information

  WARNING

The following information applies only to the Audi A6 model, type 4G, sedan and Avant (not for the A6 allroad). Not for Audi A7 Type 4G.

• 19" or larger wheels may only be installed if they are listed in the vehicle documentation.
• If installing 19" or larger wheels, an additional tank protective cover must be installed.
• If the vehicle was delivered with 19" or larger wheels, this tank protective cover is already installed.
• If the vehicle was delivered with 18" or smaller wheels, then wheels 19" or larger may not be installed.

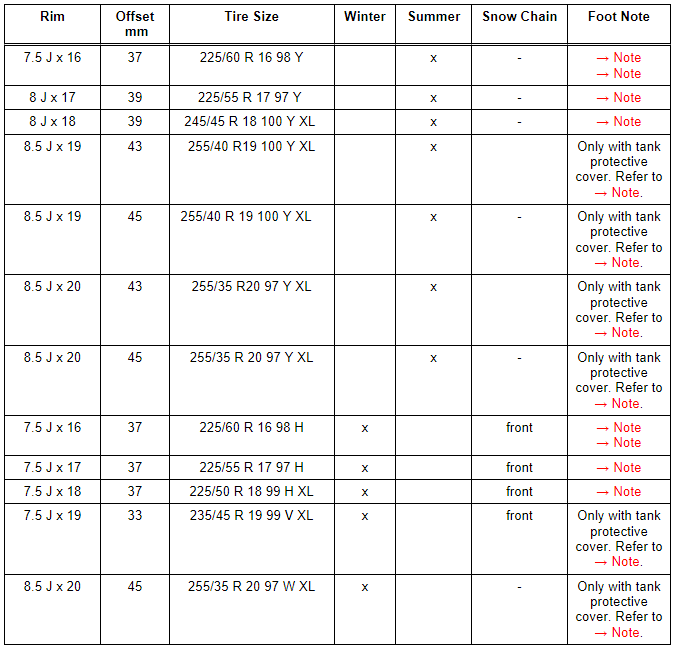

1.8L TFSI Engine 140 kW

  Note

• This information applies to vehicles with production dates from 09/2014.

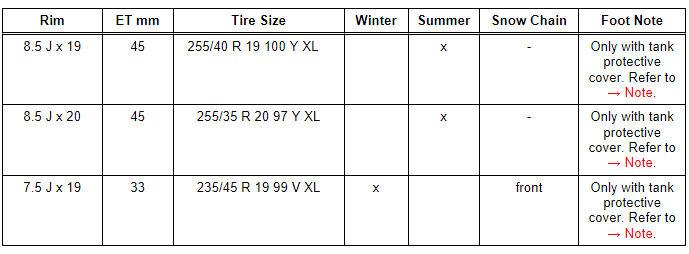

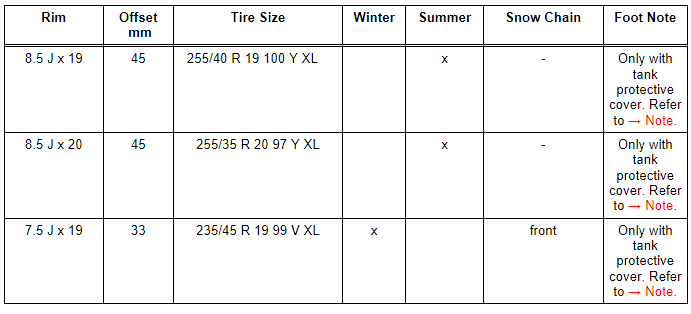

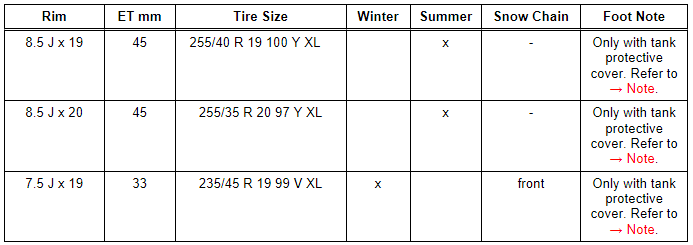

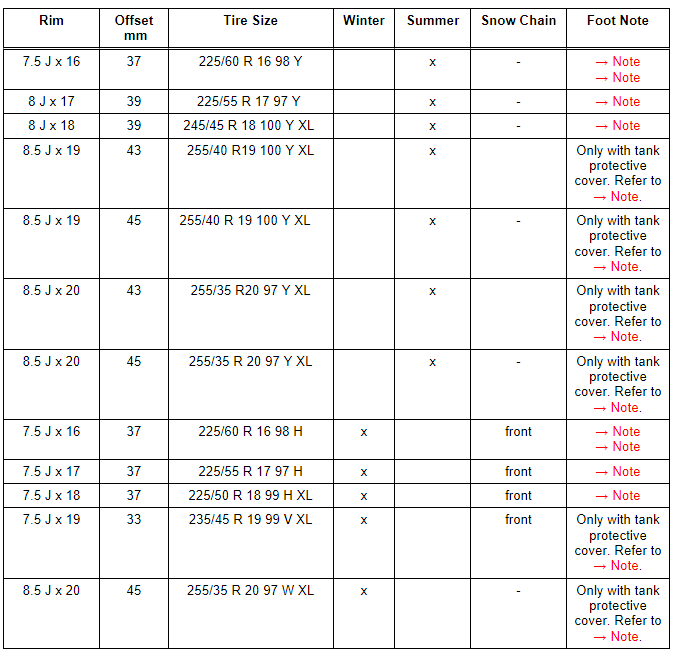

• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL, etc. brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

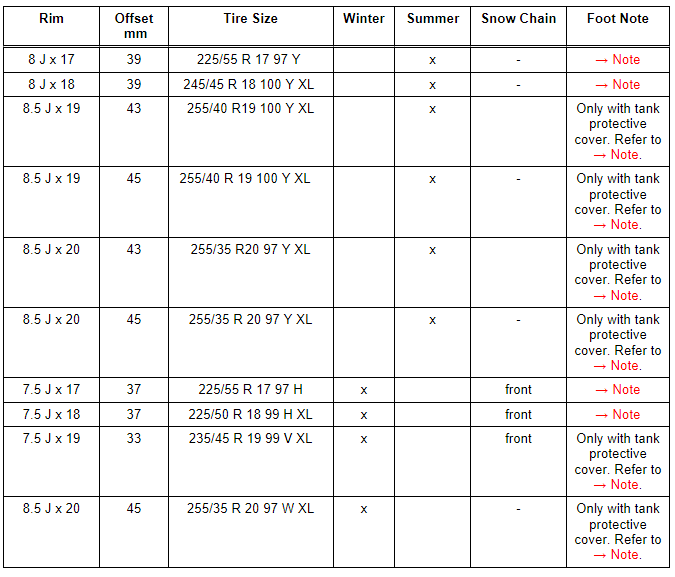

2.0L TFSI Engine, 132 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL, etc. brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

2.0L TFSI Engine, 155 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

2.0L TFSI Engine 155 kW Hybrid

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

2.0L TFSI Engine 183 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

2.0L TFSI Engine 185 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

2.8L TFSI Engine 150 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL, etc. brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

3.0L TFSI Engine 220 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

3.0L TFSI Engine 220 kW with Ceramic Brakes

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

XL = Extra Load, Reinforced

3.0L TFSI Engine 228 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

3.0L TFSI Engine 228 kW with Ceramic Brakes

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

XL = Extra Load, Reinforced

3.0L TFSI Engine 245 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

4.0L TFSI Engine 300 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

XL = Extra Load, Reinforced

4.0L TFSI Engine 331 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

XL = Extra Load, Reinforced

4.0L TFSI Engine 309 kW (S6)

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

XL = Extra Load, Reinforced

2.0L TDI Engine 100 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

2.0L TDI Engine, 110 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

2.0L TDI Engine 120 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL, etc. brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

2.0L TDI Engine 125 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

2.0L TDI Engine 130 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL, etc. brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

2.0L TDI Engine 140 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

XL = Extra Load, Reinforced

3.0L TDI Engine 150 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL, etc. brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

3.0L TDI Engine, 155 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

3.0L TDI Engine 160 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with 17" PR 1LJ, 1LL brakes.

³⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

3.0L TDI Engine 176 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

3.0L TDI Engine 180 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

3.0L TDI Engine 200 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

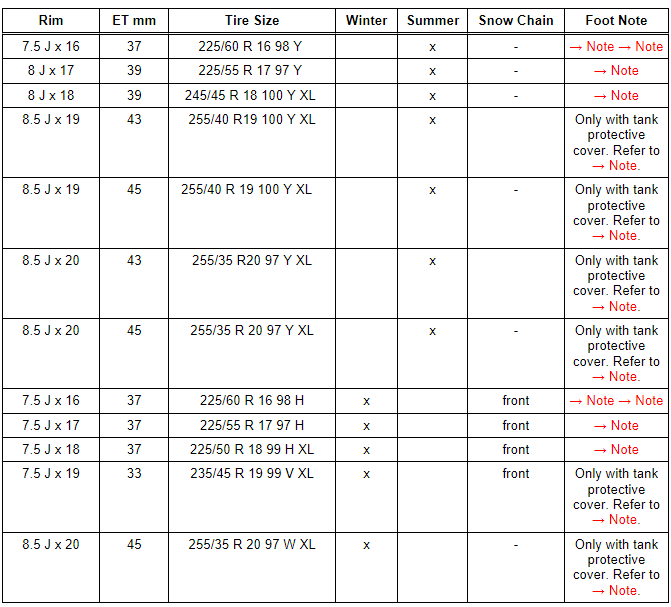

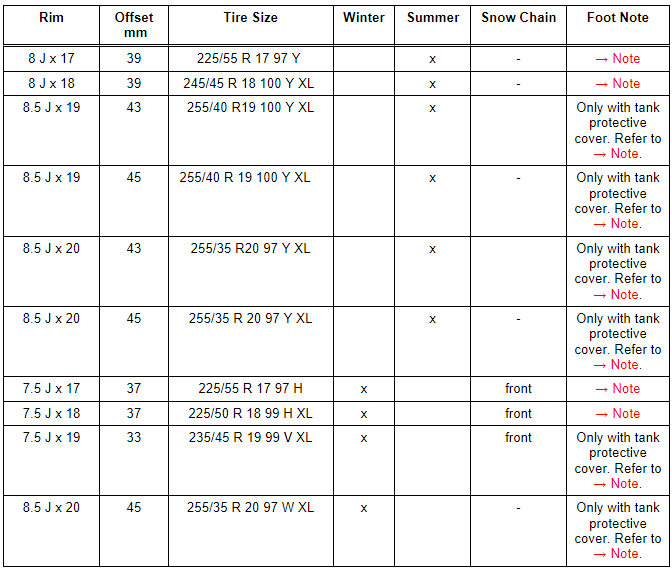

3.0L TDI Engine 230 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

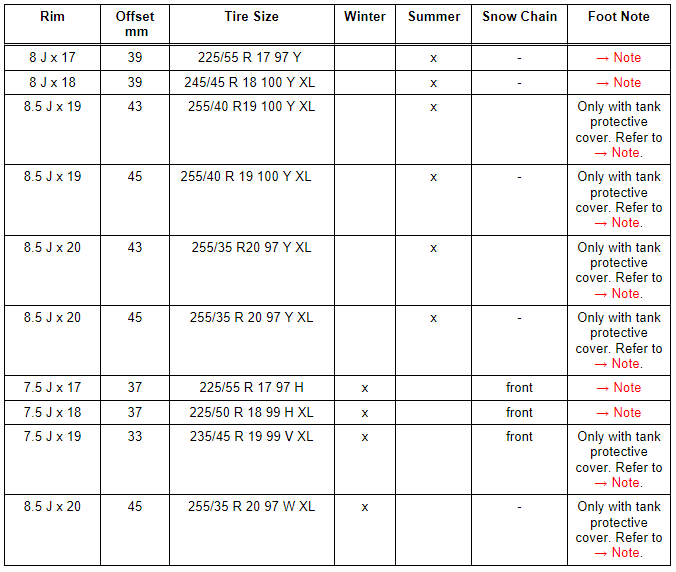

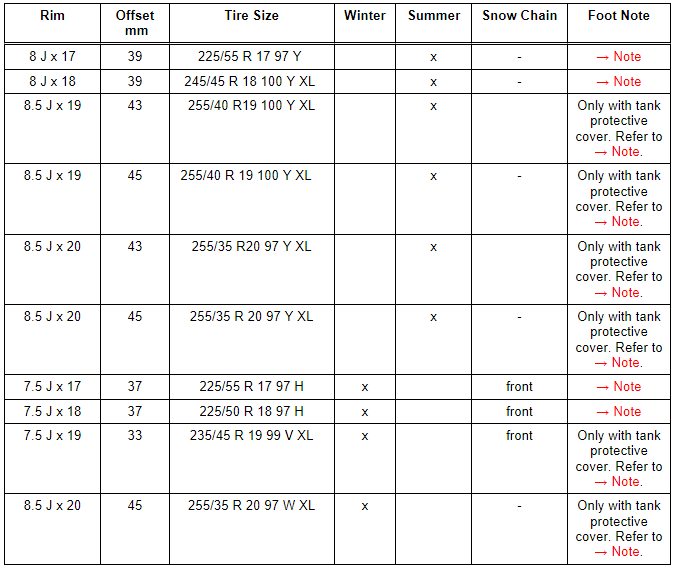

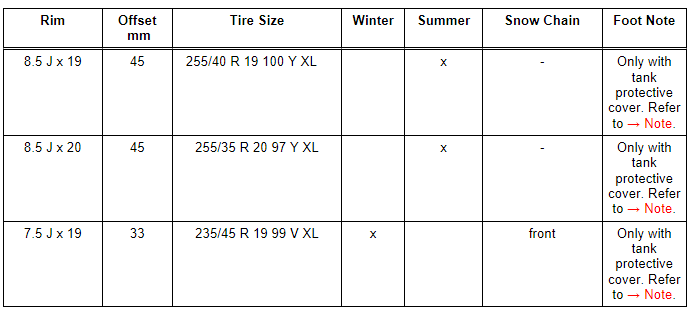

3.0L TDI Engine, 230 kW with Ceramic Brakes

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

XL = Extra Load, Reinforced

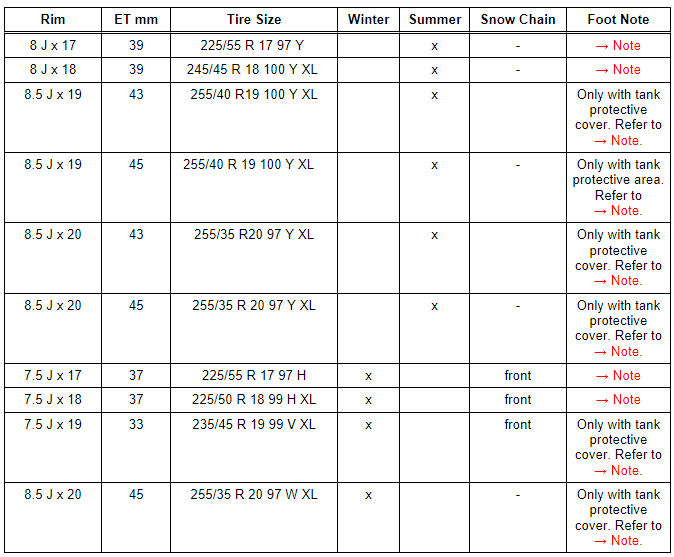

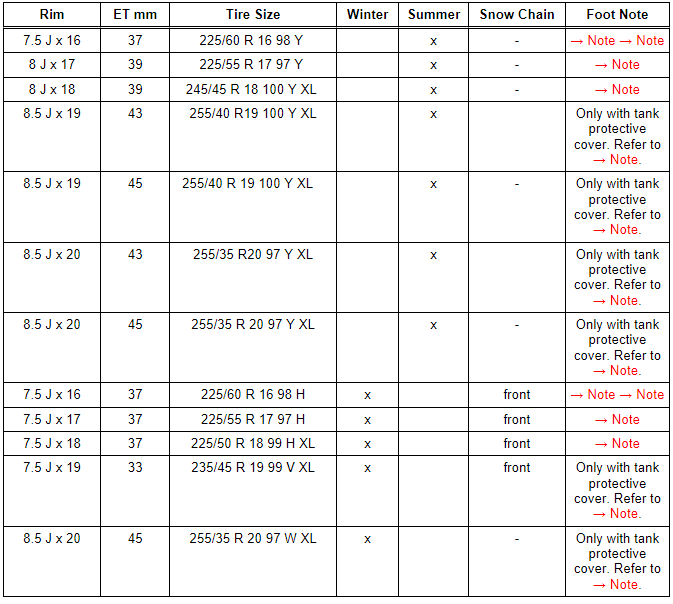

3.0L TDI Engine 235 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

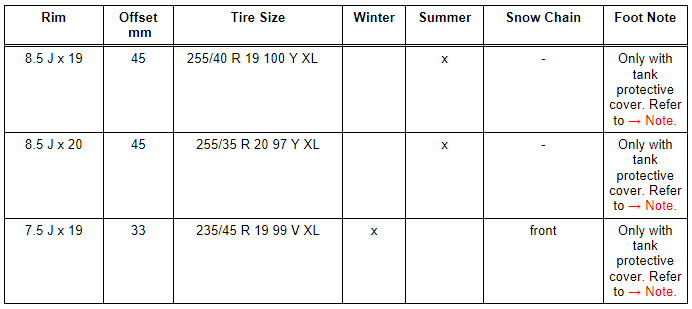

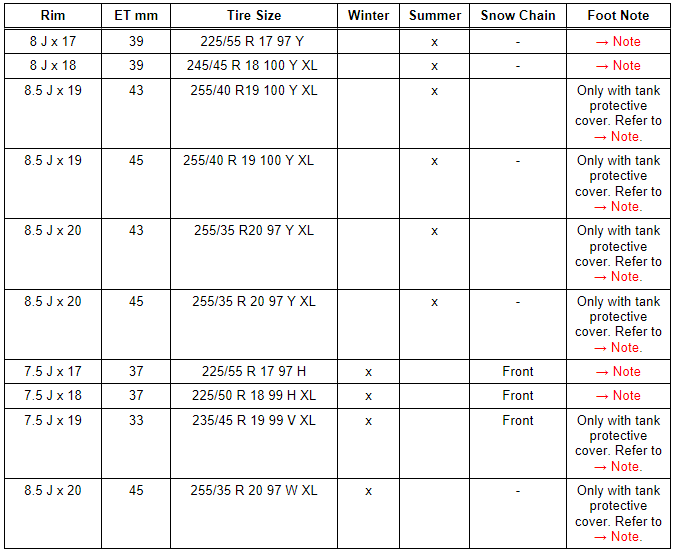

3.0L TDI Engine, 235 kW with Ceramic Brakes

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

XL = Extra Load, Reinforced

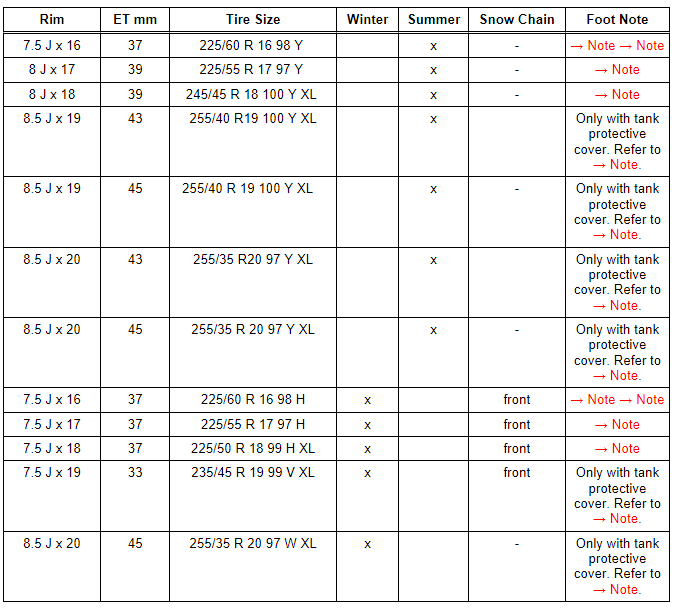

3.0L TDI Engine 240 kW

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

²⁾  Not permitted with brakes larger than 19" + Ceramic brakes PR- 1LU + 1LW.

3.0L TDI Engine, 240 kW with Ceramic Brakes

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

¹⁾  → Chapter "Read and Observe General Information"

XL = Extra Load, Reinforced

Spare wheel A6, Type 4G

Audi A6 allroad, Type 4G, MY 2011 to 2015

  Caution

Type 4F rims cannot be combined with type 4G rims.

• Type 4G inner diameter 66.5 mm, hole circle 112 mm, 5 wheel bolts, tightening specification 120 Nm
• Type 4F inner diameter 57 mm, hole circle 112 mm, 5 wheel bolts, tightening specification 120 Nm

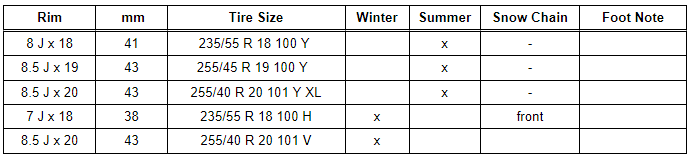

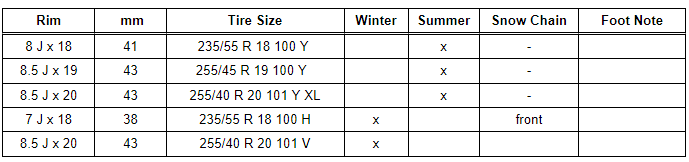

3.0L TDI Engine 150 kW, allroad

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

Audi A6, allroad, type 4G, from MY 2011

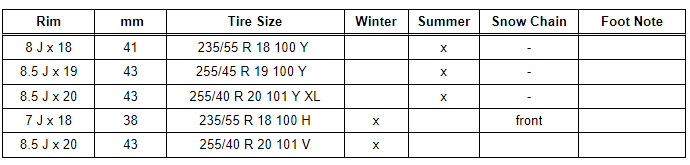

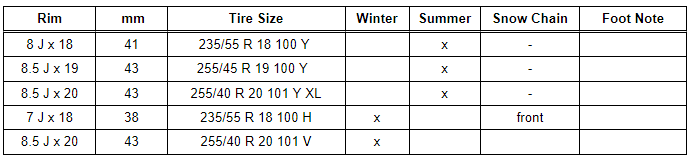

3.0L TDI Engine, 155 kW, allroad

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

Audi A6, allroad, type 4G, from MY 2011

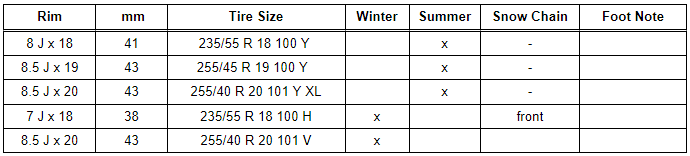

3.0L TDI Engine 160 kW, allroad

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

Audi A6, allroad, type 4G, from MY 2011

3.0L TDI Engine 180 kW, allroad

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

Audi A6, allroad, type 4G, from MY 2011

3.0L TDI Engine 200 kW, allroad

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

Audi A6, allroad, type 4G, from MY 2011

3.0L TDI Engine 230 kW, allroad

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

Audi A6, allroad, type 4G, from MY 2011

3.0L TDI Engine 235 kW, allroad

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

Audi A6, allroad, type 4G, from MY 2011

3.0L TFSI Engine 228 kW, allroad

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

Audi A6, allroad, type 4G, from MY 2011

3.0L TFSI Engine 245 kW, allroad

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

Audi A6, allroad, type 4G, from MY 2011

Spare wheel A6, allroad, Type 4G

Audi A6 allroad Rims, Type 4G

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rim sizes are valid for the affected vehicle.

  Caution

Type 4F rims cannot be combined with type 4G rims.

• Type 4G inner diameter 66.5 mm, hole circle 112 mm, 5 wheel bolts, tightening specification 120 Nm
• Type 4F inner diameter 57 mm, hole circle 112 mm, 5 wheel bolts, tightening specification 120 Nm

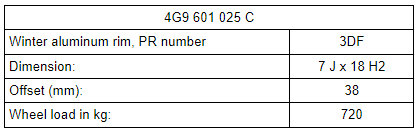

Winter Rim 7 J x 18

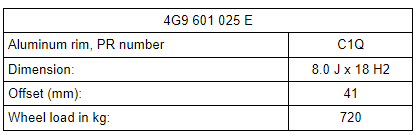

Rim 8 J x 18

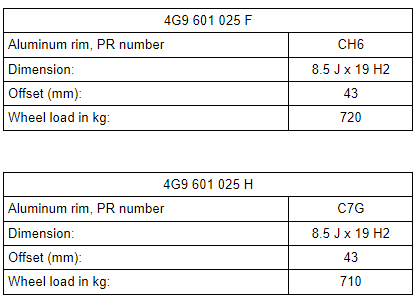

Rim - 8.5 J x 19

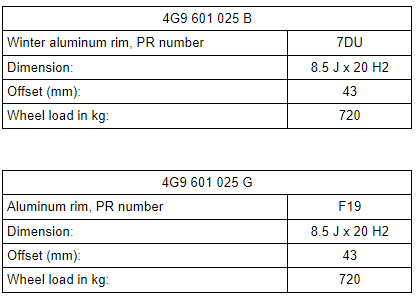

Rim - 8.5 J x 20

Audi RS 6, Type 4G, MY 2013 to 2015

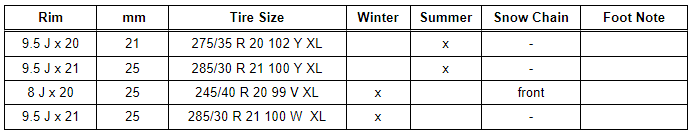

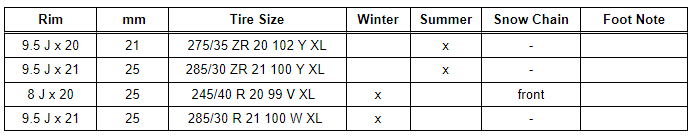

4.0L Engine 412 kW for 250 km/h + 280 km/h (RS-6)

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

XL = Extra Load

4.0L Engine 412 kW to 305 km/h (RS-6)

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rims or wheel sizes are valid for the affected vehicle.

XL = Extra Load

RS6 Rims, Type 4G

  Note

• This information applies to vehicles with production dates from 09/2014.
• These are the tire/wheel combinations that are technically possible for the vehicle.
• Check if the desired rim sizes are valid for the affected vehicle.

Note the general information. Refer to → Chapter "General Information".

  Caution

Type 4F rims cannot be combined with type 4G rims.

• Type 4G inner diameter 66.5 mm, hole circle 112 mm, 5 wheel bolts, tightening specification 120 Nm
• Type 4F inner diameter 57 mm, hole circle 112 mm, 5 wheel bolts, tightening specification 120 Nm

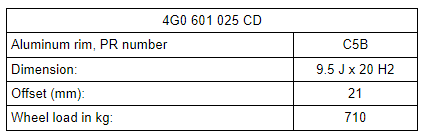

Rim 9.5 J x 20

Aluminum rim

4G0 601 025 CD

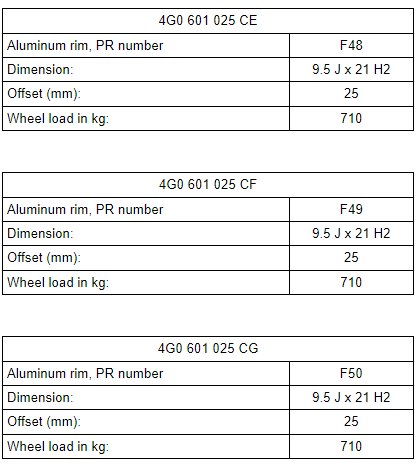

Rim 9.5 J x 21

Note the general information. Refer to → Chapter "General Information".

READ NEXT:
